Fluid Conveying
Adapters
Steel
37° Flare Union
Steel Adapters, Female JIC 37 deg Flare Swivel To Male JIC 37 deg Flare, Straight

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

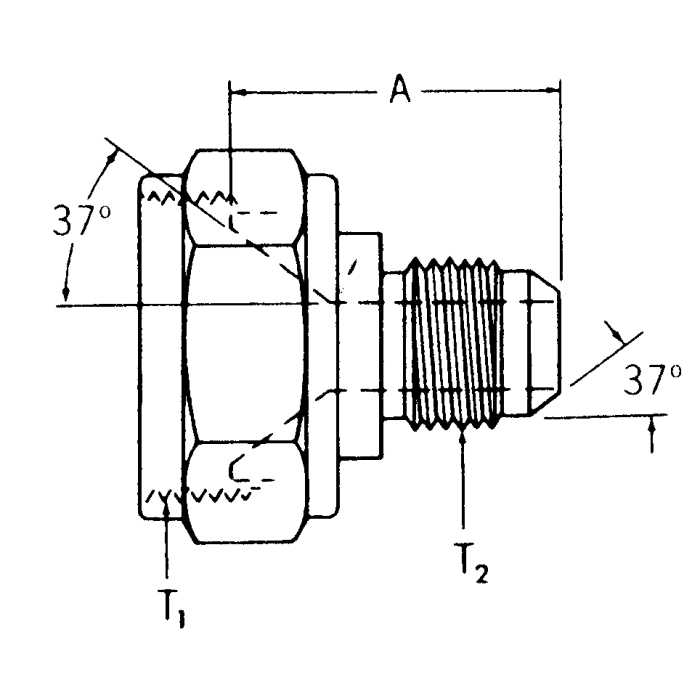

Steel Adapters, Female JIC 37 deg Flare Swivel To Male JIC 37 deg Flare, Straight

Products

Model Number	Tube O.D.	Thread 1	Thread 2	A	Price	Buy Now
221501-12-6S	0.38	1-1/16-12	9/16-18	1.09
221501-12-8S	0.5	1-1/16-12	3/4-16	1.19
221501-16-12S	0.75	1-5/16-12	1-1/16-12	1.47
221501-16-6S	0.38	1-5/16-12	9/16-18	1.16
221501-20-16S	1	1-5/8-12	1-5/16-12	1.52
221501-8-6S	0.38	3/4-16	9/16-18	1
221501-10-6S	0.38	7/8-14	9/16-18	1.03
221501-16-10S	0.63	1-5/16-12	7/8-14	1.36
221501-16-8S	0.5	1-5/16-12	3/4-16	1.26
221501-6-4S	0.25	9/16-18	7/16-20	0.97
221501-8-4S	0.25	3/4-16	7/16-20	1
6504-0606	0.38	9/16-18	9/16-18	1.59
6504-1010	0.63	7/8-14	7/8-14	2.17
