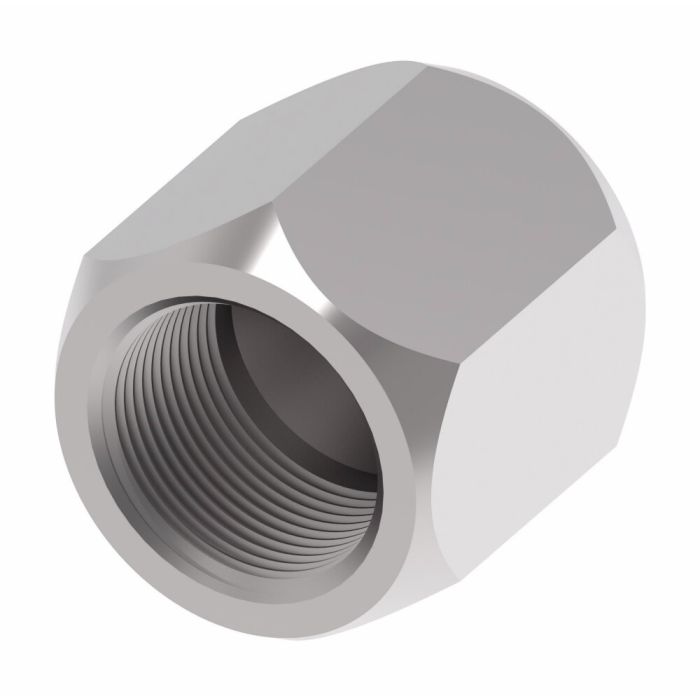

Steel Adapter, 1-3/16-12 Male O-Ring Face Seal Cap

A 1.10	Alternate Part Numbers Alternate Part Number C1CV80, Alternate Part Number MI-00306488, Alternate Part Number MINO-00015F55564	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Size 2 0.75	End Type 1 ORS	Minimum Working Temperature -40	Supplier Part Number FF9863-12S	Thread 2 1-3/16-12	Thread Sealant No	Tube O.D. 0.75	Tube O.D. 0.75	Product Weight 0.31 lbs

Product Questions & Answers 5

Product Questions & Answers

got a line that’s 3/4 tube OD, is this cap gonna match up with that ORS setup?

Question by: Roy R on Oct 25, 2025, 6:24 AM

The key callouts are 3/4 inch tube O.D. and an O-Ring Face Seal (ORS) end. This cap assembly is labeled as an ORS accessory with a 0.75 tube O.D., so it lines up with a 3/4 ORS connection.

Answer by: Customer Support on Oct 26, 2025, 8:53 AM

What size tube does this cap fit?

Question by: Joyce B on Mar 23, 2026, 7:41 AM

This cap is designed to work with a 0.75 inch OD tube.

Answer by: Customer Support on Mar 25, 2026, 7:42 AM

what size thread is this cap, and is it the O-ring face seal style or something different?

Question by: Ralph G on Sep 1, 2025, 8:27 AM

The thread is 1-3/16-12, and yes, it uses an O-ring face seal (ORS) configuration. That sealing style seats the O-ring flat against the face of the mating port rather than relying on thread engagement alone, which gives you a much more reliable leak-free connection on hydraulic lines.

Answer by: Customer Support on Sep 3, 2025, 7:44 AM

i just need to cap off a 1-3/16-12 male ORFS port, is FF9863-12S the right kind of piece?

Question by: Debbie W on Jan 3, 2026, 7:18 PM

For closing off a male O-Ring Face Seal connection with 1-3/16-12 threads, FF9863-12S is an ORS cap assembly made for that job.

Answer by: Customer Support on Jan 5, 2026, 1:17 PM

Just want to make sure this cap will fit my ORFS fitting with a 1-3/16-12 thread?

Question by: Warren F on Dec 23, 2025, 6:24 AM

Yes, this steel adapter cap is specifically designed to fit a 1-3/16-12 male O-Ring Face Seal (ORFS) fitting. It's made to protect those connections.

Answer by: Customer Support on Dec 25, 2025, 6:51 AM

Similar Products

Model Number	Tube O.D.	Thread 2	A
FF9863-04S	0.25	9/16-18	0.66
FF9863-06S	0.38	11/16-16	0.75
FF9863-08S	0.5	13/16-16	0.9
FF9863-10S	0.63	1-14	1
FF9863-12S	0.75	1-3/16-12	1.1
FF9863-16S	1	1-7/16-12	1.17
FF9863-20S	1.25	1-11/16-12	1.17
