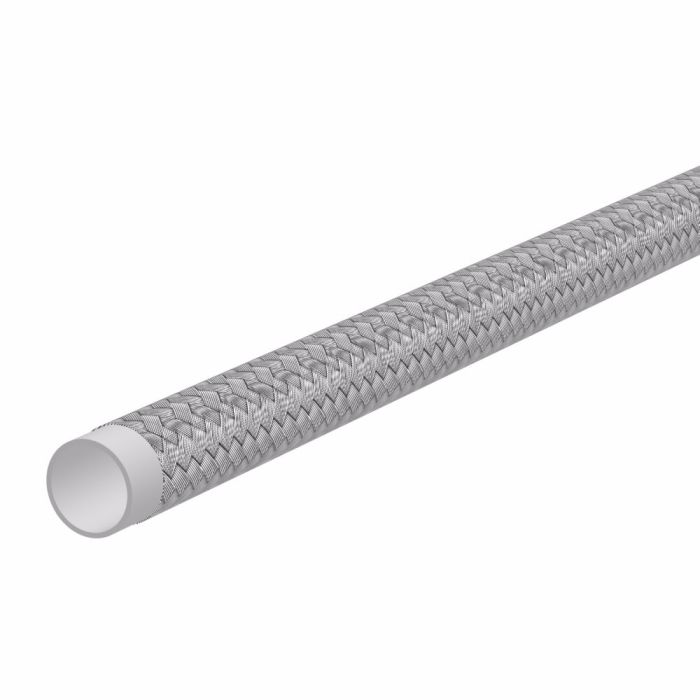

Danfoss / Eaton Hose, PTFE R14, NON-CON, MULTI PCS

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number EN-7TW100BX	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications SAE J517\|SAE 100R14B\|SAE 100R14A	Color Stainless Steel	Conductivity 13552	Construction Extruded with braided cover	Cover Material Stainless Steel	Dash Size -7	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Impulse Cycle Life 100000 cycle	Language English	Minimum Bend Radius 4.92	Minimum Bend Radius 4.92	Minimum Working Temperature -65	Product Width 0.51	Qualified Hose Fittings E series, Field Attachable, FC Series, Swage	Reinforcement Material None	Sub Brand Winner	Supplier Part Number EN-7TW	Tube Material PTFE	Product Weight 0.11 lbs

Product Questions & Answers 2

Product Questions & Answers

Running this on a compressor discharge line where we get a fair amount of vibration off the unit. Will the braid hold up to that kind of constant movement, or are we gonna have wear issues down the road?

Question by: Wes E on Aug 30, 2025, 10:35 AM

Stainless steel braid over an extruded PTFE tube is a solid combination for exactly that kind of environment. Vibration and impulse loading are two of the conditions this hose is specifically rated to handle, and the impulse cycle life comes in at 100,000 cycles. The premium abrasion resistance also helps where the hose might be rubbing against nearby components. As long as you're not pushing it into tighter bends than the 4.92-inch minimum bend radius allows, long-term durability in a high-vibration compressor setup is well within what this hose is built for.

Answer by: Customer Support on Aug 31, 2025, 8:36 PM

got a job with steam and some chemical wash down stuff. is this the non-conductive PTFE hose that holds up to that kind of service?

Question by: Kirk K on Jul 20, 2025, 1:41 PM

For steam, compressor discharge, and virtually all chemical applications, this hose is a good match since it uses an extruded PTFE tube with a stainless steel braided cover and it is specifically called out as non-conductive. It also meets SAE J517 plus SAE 100R14A and 100R14B.

Answer by: Customer Support on Jul 21, 2025, 9:23 PM
