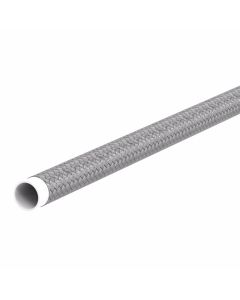

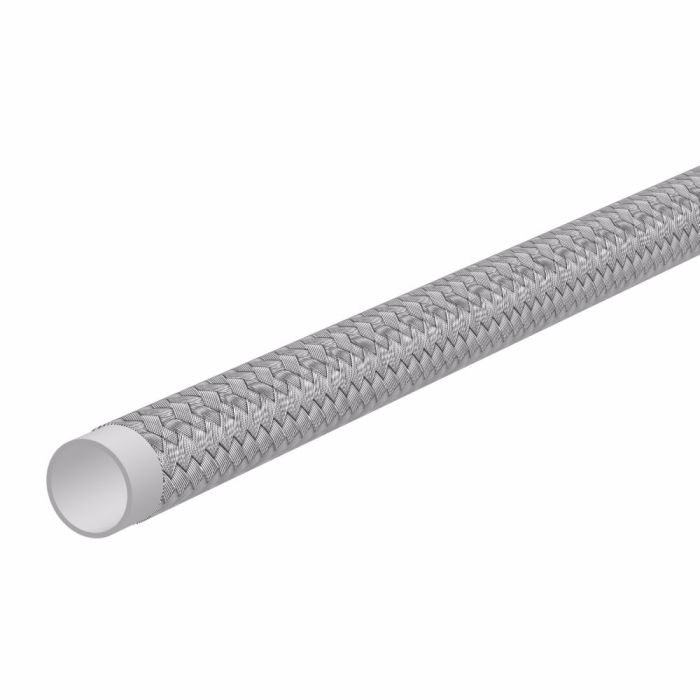

Danfoss / Eaton Winner PTFE NC 100R14 Hose

Abrasion Resistance 28	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications SAE 100R14B\|SAE 100R14A\|SAE J517	Color Stainless Steel	Conductivity 13552	Construction Extruded with braided cover	Cover Material Stainless Steel	Dash Size -18	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Impulse Cycle Life 100000 cycle	Language English	Minimum Bend Radius 11.81	Minimum Bend Radius 11.81	Minimum Working Temperature -65	Product Width 1.17	Qualified Hose Fittings E series, Field Attachable, FC Series, Swage	Reinforcement Material None	Sub Brand Winner	Supplier Part Number EN-18TW	Tube Material PTFE	Product Weight 1.25 lbs

Product Questions & Answers 2

Product Questions & Answers

What kind of fittings will work with this hose?

Question by: Stan H on Dec 29, 2025, 7:05 AM

This hose is qualified to work with E series, Field Attachable, and FC Series fittings.

Answer by: Customer Support on Dec 30, 2025, 9:17 PM

got a steam line that sees some vibration, would this PTFE hose hold up to that kind of shaking?

Question by: Melvin W on Jun 10, 2025, 10:02 AM

Built to handle vibration and impulsing, the Winner PTFE NC 100R14 hose is a common fit for steam service and it is also rated with a 100000 impulse cycle life.

Answer by: Customer Support on Jun 11, 2025, 1:40 PM
