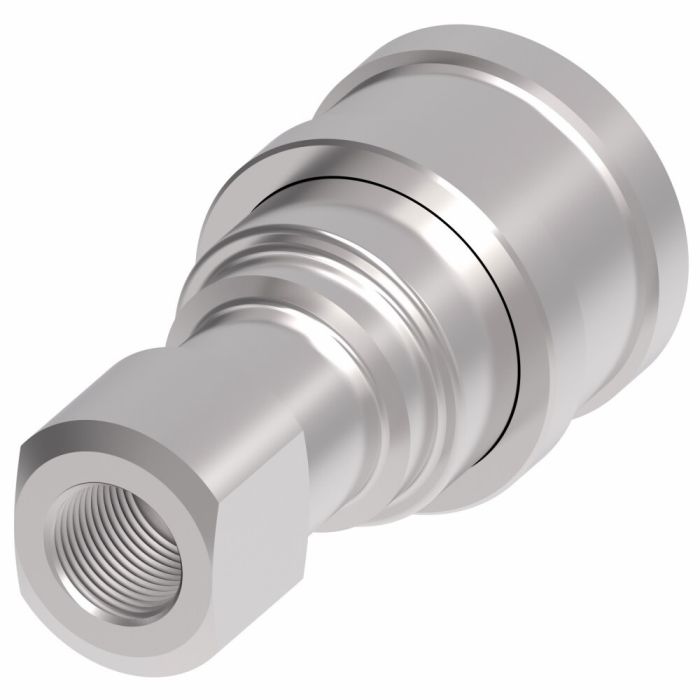

5600 Series Industrial Interchange Quick Disconnect, Female Half, -10 Coupling, 1/2-14 Female Pipe

A 2.76	Air Inclusion Max 2.80 Cubic_centimeter	Application Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles	B 1.52	Coupling Size -10	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13555	End Size 1 0.50	End Size 2 0.50	End Type 1 Push to Connect	End Type 2 NPT	Fluid Loss 2.80 Cubic_centimeter	Minimum Working Temperature -40	Rated Flow 12	Rated Flow 12	Seal Material Buna-N	Seal Part if Included 22550-211	Supplier Part Number 5601-8-10S	Thread 1 1/2-14	Thread Sealant No	Alternate Part Numbers Alternate Part Number 20011512, Alternate Part Number C1BS99, Alternate Part Number MI-06910887, Alternate Part Number MINO-00015X45488	Product Weight 0.58 lbs

Product Questions & Answers 4

Product Questions & Answers

Push-to-connect on the socket end and female pipe on the other, does that mean it'll thread straight into a 1/2 NPT port on my equipment?

Question by: Shane C on Oct 30, 2025, 11:08 AM

That's exactly right. The body end uses a 1/2-14 female NPT thread, so it screws onto a standard 1/2-inch male NPT fitting or port. The other end is the push-to-connect socket side of the quick disconnect, which is where your male half of the coupling locks in. No adapters needed if your port is already 1/2 NPT male.

Answer by: Customer Support on Oct 31, 2025, 8:46 PM

trying to swap out a worn socket on a -10 line. is this the female half with 1/2-14 female pipe threads?

Question by: Patty C on Aug 30, 2025, 5:49 PM

This is the female (socket) half in the 5600 Series with a -10 coupling size and a 1/2-14 NPT female pipe thread connection.

Answer by: Customer Support on Aug 31, 2025, 6:13 PM

Will this quick disconnect work with standard hydraulic setups?

Question by: Lynn H on Jul 4, 2025, 3:32 PM

This unit uses 1/2-14 NPT end connections and push-to-connect functionality, making it compatible with various industrial setups.

Answer by: Customer Support on Jul 6, 2025, 6:42 AM

does this thing work with standard NPT fittings or do I need something special to hook it up?

Question by: Glen W on Jul 24, 2025, 6:45 AM

The female pipe end on this coupling is 1/2-14 NPT, so it threads right onto standard NPT connections without any adapter needed. The other end uses a push-to-connect style, which is how it mates up with the male half of the quick disconnect. As long as your hydraulic connections is running 1/2-14 NPT on the pipe side, you're in good shape.

Answer by: Customer Support on Jul 25, 2025, 6:47 PM

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A	B
5601-4-4S	-04	1/4-18	Buna-N	1.81	1.08
5601-6-6S	-06	3/8-18	Buna-N	2.09	1.27
5601-8-10S	-10	1/2-14	Buna-N	2.76	1.52
5601-12-10S	-10	3/4-14	Buna-N	2.91	1.52
5601-12-12S	-12	3/4-14	Buna-N	3.25	1.84
5601-16-16S	-16	1-11-1/2	Buna-N	4.09	2.15
5601-2-4S	-04	1/8-27	Buna-N	1.81	1.08
