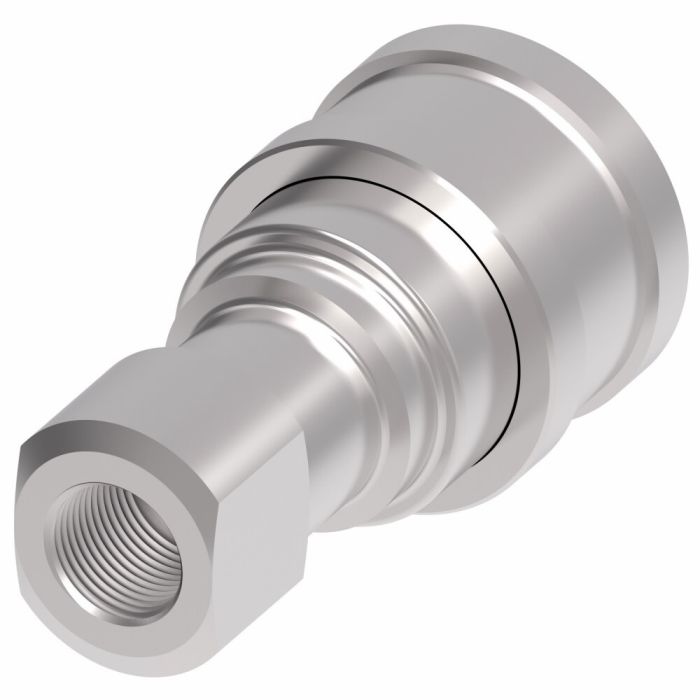

HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Female Half, -04 Coupling, 1/4-18 Female NPT

A 2.26	Air Inclusion Max 1.20 Cubic_centimeter	Application Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical	B 1.14	Coupling Size -04	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13555	End Size 1 0.25	End Size 2 0.25	End Type 1 Push to Connect	End Type 2 NPTF	Fluid Loss 0.90 Cubic_centimeter	Minimum Working Temperature -40	Safety locking Mechanism None	Seal Material Buna-N	Seal Part if Included 9143	Supplier Part Number 2H16	Thread 1 1/4-18	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1KU65, Alternate Part Number MI-06031607, Alternate Part Number MINO-00015X00426	Product Weight 0.28 lbs

Product Questions & Answers 1

Product Questions & Answers

got one of these laying around the shop but it's beat up - what thread size is this female fitting again?

Question by: Chad E on Feb 21, 2025, 9:45 AM

Uses 1/4-18 female NPT threading for connection to your hydraulic system. Being part of the HK Series Industrial Interchange, it's built from steel construction to handle repeated connections and disconnections in shop environments.

Answer by: Customer Support on Feb 22, 2025, 6:50 PM

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A	B
1H11	-02	1/8-27	Buna-N	1.91	0.98
2H16	-04	1/4-18	Buna-N	2.26	1.14
3H21	-06	3/8-18	Buna-N	2.56	1.42
4HP26	-10	1/2-14	Buna-N	2.96	1.86
6HP31	-12	3/4-14	Buna-N	3.48	2.22
8HP36	-16	1-11-1/2	Buna-N	4.13	2.61
