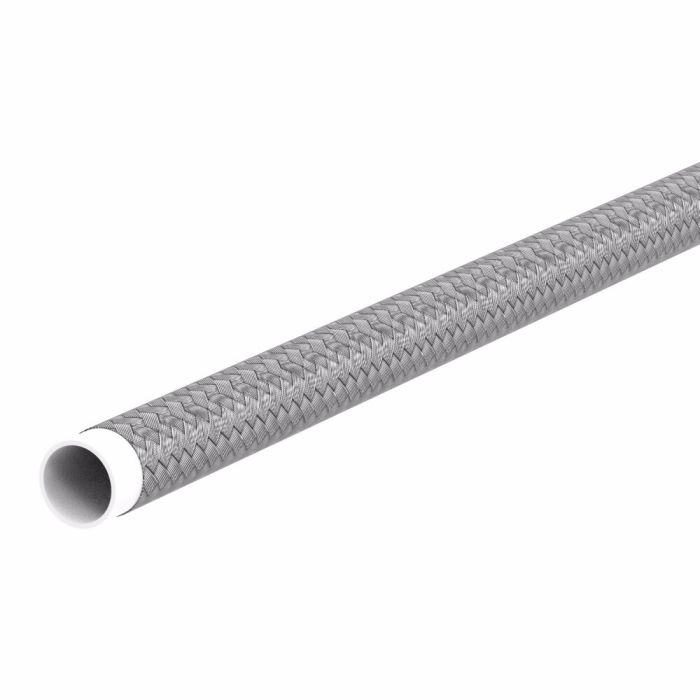

Danfoss / Eaton Winner PTFE 100R14 Hose 7/8 ID

Abrasion Resistance 28	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications SAE 100R14A\|SAE J517\|SAE 100R14B	Color Stainless Steel	Conductivity 13552	Construction Extruded with braided cover	Cover Material Stainless Steel	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Impulse Cycle Life 150000 cycle	Language English	Minimum Bend Radius 9	Minimum Bend Radius 9	Minimum Working Temperature -65	Product Width 1.03	Qualified Hose Fittings E series, Field Attachable, FC Series, Swage	Reinforcement Material None	Sub Brand Winner	Supplier Part Number EN-16TW	Tube Material PTFE	Product Weight 0.77 lbs

Product Questions & Answers 2

Product Questions & Answers

got a steam line that sees a lot of shake and vibration, is this hose built for that kind of service

Question by: Billy B on May 20, 2025, 7:02 PM

For steam compressor discharge and similar service where the line gets vibration and impulsing, the Winner EN-TW PTFE hose is built to handle it. It uses an extruded PTFE tube with a stainless steel braided cover, and it is rated to SAE 100R14A and 100R14B under SAE J517.

Answer by: Customer Support on May 22, 2025, 9:54 AM

Hey, I'm wondering if this hose is alright for running steam through it on a compressor discharge?

Question by: Carl C on Jun 12, 2025, 8:22 AM

Application-wise, it's ideal for steam and compressor discharge setups. Just a heads up, it's not recommended if you're cycling between steam and cold water.

Answer by: Customer Support on Jun 14, 2025, 6:13 AM
