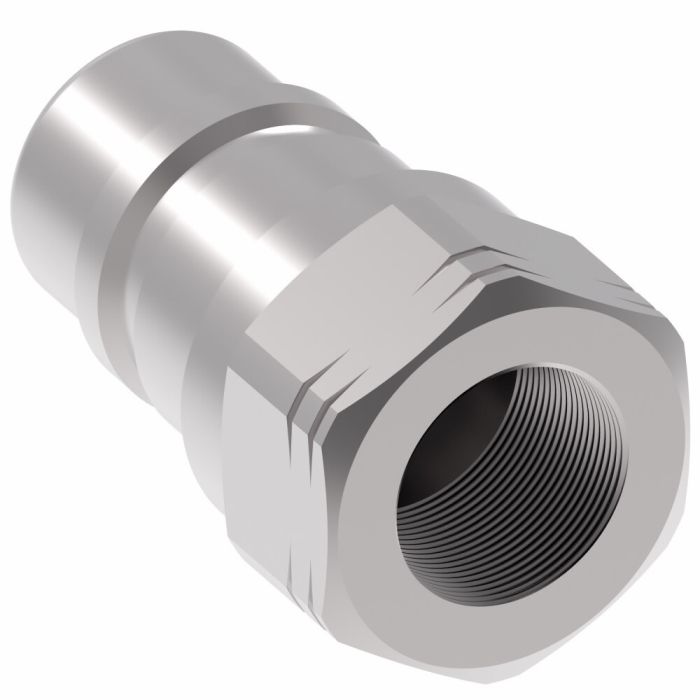

5600 Series Industrial Interchange Quick Disconnect, Male Half, -04 Coupling, 1/4-18 Female Pipe

A 1.24	Air Inclusion Max 0.50 Cubic_centimeter	Application Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles	Coupling Size -04	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Size 1 0.25	End Size 2 0.25	End Type 1 Push to Connect	End Type 2 NPT	Fluid Loss 0.50 Cubic_centimeter	Minimum Working Temperature -40	Rated Flow 1	Rated Flow 1	Seal Material Buna-N	Supplier Part Number 5602-4-4S	Thread 1 1/4-18	Thread Sealant No	Alternate Part Numbers Alternate Part Number 12365755-1, Alternate Part Number C1BT15, Alternate Part Number MI-06910889, Alternate Part Number MINO-00015X64145	Product Weight 0.07 lbs

Product Questions & Answers 3

Product Questions & Answers

Trying to figure out if this'll hook up to my existing hydraulic lines on a piece of construction equipment. It's got a 1/4-18 female pipe thread on the body side, that match up right?

Question by: Harold C on Sep 25, 2025, 4:54 PM

The body end on this fitting is a 1/4-18 NPT female, so if your mating component has a 1/4-18 male NPT thread, you're good to go. The push-to-connect end is a -04 coupling size, which conforms to ISO 7241/1 Series A dimensions. That standard compliance means it'll mate with other Series A couplings of the same size without issue.

Answer by: Customer Support on Sep 27, 2025, 6:12 AM

does this thing work with standard ISO Series A couplings or do I need something special on the other end

Question by: Chad O on Oct 12, 2025, 5:37 PM

it conforms dimensionally to ISO 7241/1 Series A, so it'll mate up with other Series A couplings without any adapter tricks. The PUSH-PULL ball latch handles the connection and disconnection, and the self-sealing poppet valve closes off both sides when you pull them apart, keeping fluid loss down to around 0.50 cubic centimeters per disconnect. Pretty straightforward fit for most hydraulic setups already running that standard.

Answer by: Customer Support on Oct 14, 2025, 6:13 AM

Will this fitting hold up on a dump truck application where it's getting constant use?

Question by: Daryl R on Nov 8, 2025, 11:15 AM

Designed for hydraulic fluid transfer in agricultural and construction equipment, this Eaton/Danfoss Hansen coupling plug should be suitable for dump truck applications, but consider temperature and fluid compatibility.

Answer by: Customer Support on Nov 10, 2025, 6:16 AM

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A
5602-12-12S	-12	3/4-14	Buna-N	2.28
5602-4-4S	-04	1/4-18	Buna-N	1.24
5602-6-6S	-06	3/8-18	Buna-N	1.4
5602-8-10S	-10	1/2-14	Buna-N	1.89
5602-12-10S	-10	3/4-14	Buna-N	2.03
5602-16-16S	-16	1-11-1/2	Buna-N	2.77
5602-2-4S	-04	1/8-27	Buna-N	1.17
