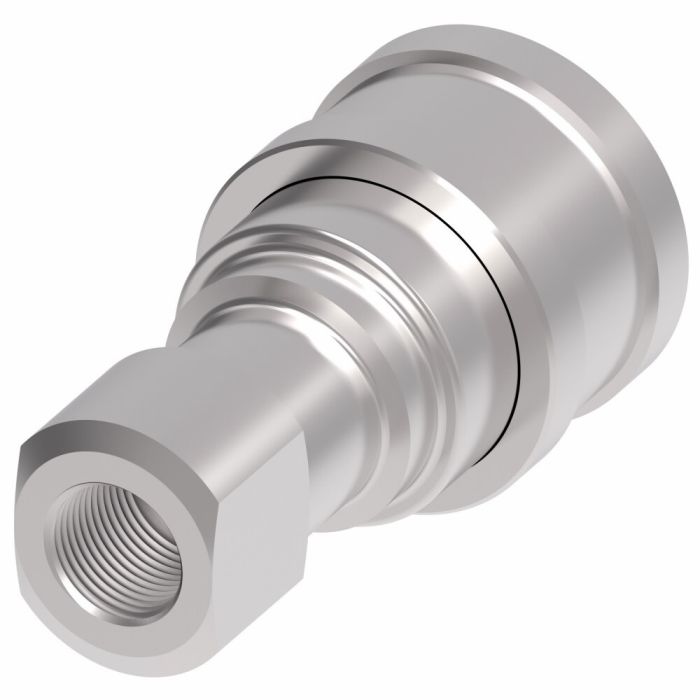

5600 Series Industrial Interchange Quick Disconnect, Female Half, -04 Coupling, 1/4-18 Female Pipe

A 1.81	Air Inclusion Max 0.50 Cubic_centimeter	Application Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles	B 1.08	Coupling Size -04	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13555	End Size 2 0.25	End Type 1 Push to Connect	End Type 2 NPTF	Fluid Loss 0.50 Cubic_centimeter	Minimum Working Temperature -40	Rated Flow 1	Rated Flow 1	Seal Material Buna-N	Seal Part if Included 22550-112	Supplier Part Number 5601-4-4S	Thread 1 1/4-18	Thread Sealant No	Alternate Part Numbers Alternate Part Number 12365755-2, Alternate Part Number C1BS97, Alternate Part Number MI-06910885, Alternate Part Number MINO-00015X64815	Product Weight 0.23 lbs

Product Questions & Answers 4

Product Questions & Answers

does this hook up to standard ag equipment fittings or do i need an adapter? trying to figure out if it'll mate up with what we already got on the line.

Question by: Gene P on Dec 24, 2025, 7:01 PM

Built to ISO standard 7241/1 Series A dimensions, so it mates with other Industrial Interchange couplings that follow the same spec. The socket end is a 1/4-18 NPTF female pipe thread, which is common on a lot of agricultural and construction equipment. If your existing fittings follow that ISO series and use a matching male half, you should be good to go without an adapter.

Answer by: Customer Support on Dec 26, 2025, 6:03 PM

Will this fitting work for hydraulic fluid transfer on my tractor?

Question by: Scott S on Mar 12, 2026, 9:01 AM

It's designed for hydraulic fluid transfer, and it's often used on agricultural equipment like tractors, as well as construction equipment.

Answer by: Customer Support on Mar 13, 2026, 12:13 PM

got a -04 line already, is this the right female half with 1/4-18 female pipe threads?

Question by: Troy M on Oct 3, 2025, 6:36 PM

You’re looking at a -04 size 5600 Series Industrial Interchange female half with a 1/4-18 female pipe thread (NPTF). Both ends on this one are female, and it’s the socket style with a push to connect interface on the coupling side.

Answer by: Customer Support on Oct 5, 2025, 6:43 AM

does this thing work on agricultural equipment or is it more of a shop/plant type fitting

Question by: Carl C on Jun 25, 2025, 9:47 PM

Both, actually. The 5600 Series sees regular use in agricultural equipment, in-plant manufacturing setups, and construction machinery. It also fits dump trucks, snow plows, and maintenance vehicles. The PUSH-PULL ball latch makes hookup and disconnect fast when you're out in the field and don't want to mess around.

Answer by: Customer Support on Jun 27, 2025, 8:13 PM

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A	B
5601-4-4S	-04	1/4-18	Buna-N	1.81	1.08
5601-6-6S	-06	3/8-18	Buna-N	2.09	1.27
5601-8-10S	-10	1/2-14	Buna-N	2.76	1.52
5601-12-10S	-10	3/4-14	Buna-N	2.91	1.52
5601-12-12S	-12	3/4-14	Buna-N	3.25	1.84
5601-16-16S	-16	1-11-1/2	Buna-N	4.09	2.15
5601-2-4S	-04	1/8-27	Buna-N	1.81	1.08
