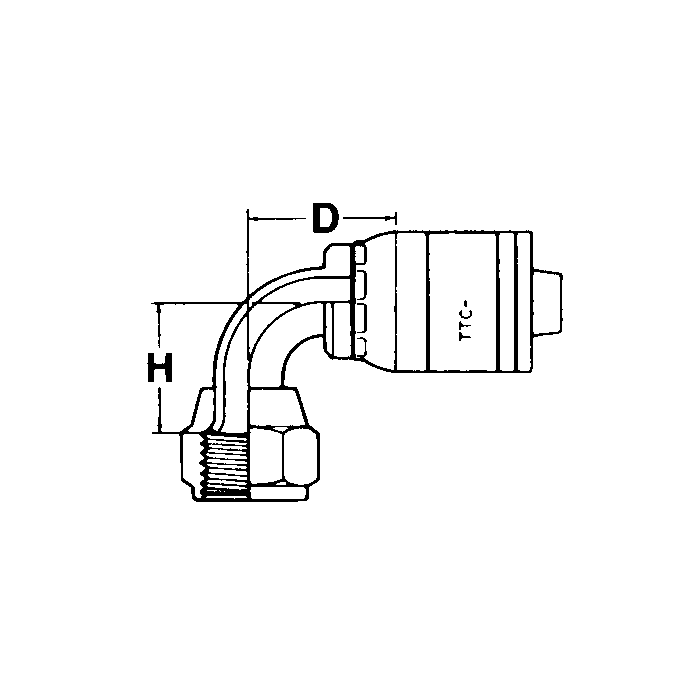

Global TTC 1 & 2 Wire Braid Steel Crimp Fittings, Female JIC 37 deg Flare Swivel, 90 deg Elbow
Products
| Model Number | Thread 1 | Hose Size | D | H | Price | Buy Now |
|---|---|---|---|---|---|---|
| 1AA10FJB10 | 7/8-14 | -10 | 1.55 | 1.19 in |
|
|
| 1AA10FJB8 | 7/8-14 | -08 | 1.61 | 1.19 in |
|
|
| 1AA12FJB10 | 1-1/16-12 | -10 | 2.16 | 1.8 in |
|
|
| 1AA12FJB12 | 1-1/16-12 | -12 | 2.17 | 1.8 in |
|
|
| 1AA16FJB16 | 1-5/16-12 | -16 | 2.2 | 2.39 in |
|
|
| 1AA4FJB4 | 7/16-20 | -04 | 0.92 | 0.68 in |
|
|
| 1AA6FJB4 | 9/16-18 | -04 | 1.08 | 0.84 in |
|
|
| 1AA6FJB6 | 9/16-18 | -06 | 1.22 | 0.84 in |
|
|
| 1AA8FJB6 | 3/4-16 | -06 | 1.42 | 1.09 in |
|
|
| 1AA8FJB8 | 3/4-16 | -08 | 1.42 | 0.84 in |
|
|
| 1AA20FJB20 | 1-5/8-12 | -20 | 2.52 | 2.75 in |
|
|
| 1AA16FJB12 | 1-5/16-12 | -12 | 2.18 | 2.39 in |
|
|
| 1AA24FJB24 | 1-7/8-12 | -24 | 2.81 | 3.17 in |
|
|
| 1AA4FJB6 | 7/16-20 | -06 | 0.98 | 0.68 in |
|
|
| 1AA5FJB4 | 1/2-20 | -04 | 1 | 0.76 in |
|
