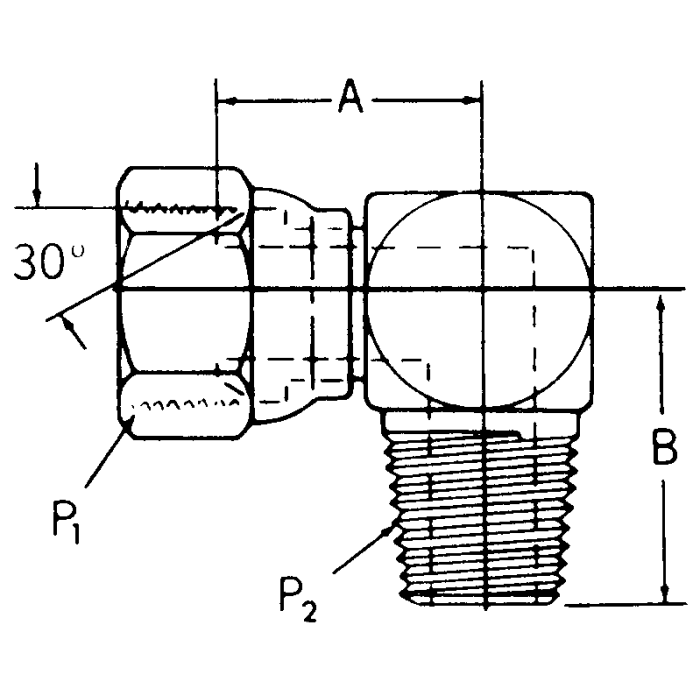

Steel Adapters, Female NPT Swivel To Male NPT, 90 deg Elbow
Products
| Model Number | Thread 1 | Thread 2 | A | B | Price | Buy Now |
|---|---|---|---|---|---|---|
| 2047-4-4S | 1/4-18 | 1/4-18 | 0.78 | 1.19 |
|
|
| 2047-6-8S | 3/8-18 | 1/2-14 | 1 | 1.81 |
|
|
| 2047-8-12S | 1/2-14 | 3/4-14 | 1.12 | 2 |
|
|
| 2047-8-6S | 1/2-14 | 3/8-18 | 1 | 1.67 |
|
|
| 1501-12-06 | 3/8-18 | 3/4-14 | 1.02 | 2 |
|
|
| 2047-12-12S | 3/4-14 | 3/4-14 | 1.19 | 2 |
|
|
| 2047-12-16S | 3/4-14 | 1-11-1/2 | 1.28 | 2.38 |
|
|
| 2047-12-8S | 3/4-14 | 1/2-14 | 1.1 | 1.81 |
|
|
| 2047-16-16S | 1-11-1/2 | 1-11-1/2 | 1.44 | 2.38 |
|
|
| 2047-2-2S | 1/8-27 | 1/8-27 | 0.69 | 0.94 |
|
|
| 2047-20-20S | 1-1/4-11-1/2 | 1-1/4-11-1/2 | 1.62 | 2.62 |
|
|
| 2047-4-6S | 1/4-18 | 3/8-18 | 0.84 | 1.5 |
|
|
| 2047-6-6S | 3/8-18 | 3/8-18 | 0.94 | 1.5 |
|
|
| 2047-8-8S | 1/2-14 | 1/2-14 | 1 | 1.81 |
|
