Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M14 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, Straight

Application General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist	D 22.60	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Size 1 0.38	End Size 2 0.25	End Type 1 Metric	End Type 2 Line/Hose/Tube	Hose Size -04	Mandrel Required No	Supplier Part Number 1A6DL4	Thread 1 M14 x 1.5	Thread Sealant No	Torque Rating 19-23 LB/FT	Torque Rating 19-23 LB/FT	Alternate Part Numbers Alternate Part Number C1AN77, Alternate Part Number MI-01547049, Alternate Part Number MINO-00015J21033	Tube O.D. 8	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting says it works with H277 or H435 hose, does that mean it won't crimp right onto other hose types, or is that just where it's been rated?

Question by: Tammy J on Aug 8, 2025, 5:11 PM

Those two hose types are what this fitting is rated and validated for. Using it with other hose constructions could mean the crimp dimensions don't seat the way they should, which affects holding strength and sealing. If your application calls for H277 or H435 in a -04 size, you're in good shape. Outside of those, you'd be working beyond what the fitting's been confirmed for.

Answer by: Customer Support on Aug 10, 2025, 1:01 PM

Similar Products

Model Number	Thread 1	Tube O.D.	Hose Size	D
1A20DL12	M30 x 2	22	-12	32.3
1A10DL6	M18 x 1.5	12	-06	25.9
1A12DL8	M22 x 1.5	15	-08	28.6
1A16DL10	M26 x 1.5	18	-10	29.8
1A25DL16	M36 x 2	28	-16	33.8
1A40DL24	M52 x 2	42	-24	40.9

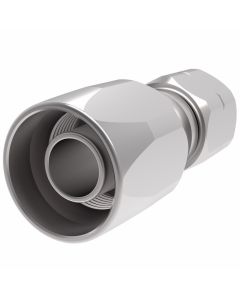

1A5DL4	M12 x 1.5	6	-04	24.6
1A6DL4	M14 x 1.5	8	-04	22.6
1A8DL4	M16 x 1.5	10	-04	24.9
1A8DL6	M16 x 1.5	10	-06	31.6
