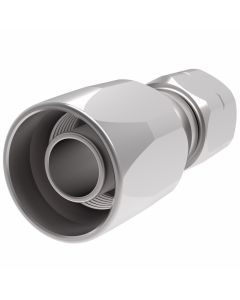

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M12 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -04 Hose, Straight

Application General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist	D 24.60	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Size 1 0.31	End Size 2 0.25	End Type 1 Metric	End Type 2 Line/Hose/Tube	Hose Size -04	Mandrel Required No	Supplier Part Number 1A5DL4	Thread 1 M12 x 1.5	Thread Sealant No	Torque Rating 15-19 LB/FT	Torque Rating 15-19 LB/FT	Alternate Part Numbers Alternate Part Number C1AN66, Alternate Part Number MI-02721805, Alternate Part Number MINO-00015J21063	Tube O.D. 6	Product Weight 0.12 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to match up a hose end, is this one for -04 hose and an M12 x 1.5 female swivel?

Question by: Melvin J on Aug 10, 2025, 5:06 PM

It’s a straight crimp fitting that connects an M12 x 1.5 metric female German DIN 3902 24 degree flare light duty swivel end to a -04 hose size.

Answer by: Customer Support on Aug 12, 2025, 8:45 AM

fitting says it don't need a mandrel, that accurate? just want to make sure before i go digging through the shop looking for one

Question by: Darryl P on Jul 4, 2025, 7:29 PM

Correct, no mandrel required for assembly. That simplifies things considerably, especially in a shop environment where you're trying to move fast. Just keep in mind there's also no thread sealant included, so you'll want to have that on hand separately before you start the install.

Answer by: Customer Support on Jul 6, 2025, 7:14 AM

Similar Products

Model Number	Thread 1	Tube O.D.	Hose Size	D
1A20DL12	M30 x 2	22	-12	32.3
1A10DL6	M18 x 1.5	12	-06	25.9
1A12DL8	M22 x 1.5	15	-08	28.6
1A16DL10	M26 x 1.5	18	-10	29.8
1A25DL16	M36 x 2	28	-16	33.8
1A40DL24	M52 x 2	42	-24	40.9
1A5DL4	M12 x 1.5	6	-04	24.6
1A6DL4	M14 x 1.5	8	-04	22.6
1A8DL4	M16 x 1.5	10	-04	24.9
1A8DL6	M16 x 1.5	10	-06	31.6
