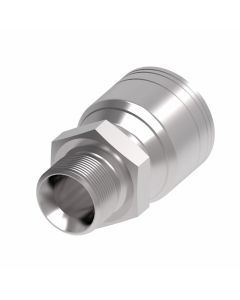

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M16 x 1.5 Female German DIN 3902 24 deg Flare Light Duty Swivel, -06 Hose, Straight

Application General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist	D 31.60	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Size 1 0.50	End Size 2 0.38	End Type 1 Metric	End Type 2 Line/Hose/Tube	Hose Size -06	Mandrel Required No	Supplier Part Number 1A8DL6	Thread 1 M16 x 1.5	Thread Sealant No	Torque Rating 33-40 LB/FT	Torque Rating 33-40 LB/FT	Alternate Part Numbers Alternate Part Number C1AN94, Alternate Part Number MI-02605179, Alternate Part Number MINO-00015X50071	Tube O.D. 10	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a -06 hose that needs a straight fitting with M16 x 1.5 threads, will this Global TTC work for crimping?

Question by: Kirk R on Feb 5, 2026, 7:19 PM

Absolutely, you've got the right match. Built specifically for -06 hose applications with M16 x 1.5 female threads and the German DIN 3902 standard 24 degree flare connection. Works with both single and double wire braid steel hose constructions, so it'll handle most common hydraulic setups that call for this thread spec.

Answer by: Customer Support on Feb 7, 2026, 6:25 AM

Similar Products

Model Number	Thread 1	Tube O.D.	Hose Size	D
1A20DL12	M30 x 2	22	-12	32.3
1A10DL6	M18 x 1.5	12	-06	25.9
1A12DL8	M22 x 1.5	15	-08	28.6
1A16DL10	M26 x 1.5	18	-10	29.8
1A25DL16	M36 x 2	28	-16	33.8
1A40DL24	M52 x 2	42	-24	40.9
1A5DL4	M12 x 1.5	6	-04	24.6
1A6DL4	M14 x 1.5	8	-04	22.6
1A8DL4	M16 x 1.5	10	-04	24.9
1A8DL6	M16 x 1.5	10	-06	31.6
