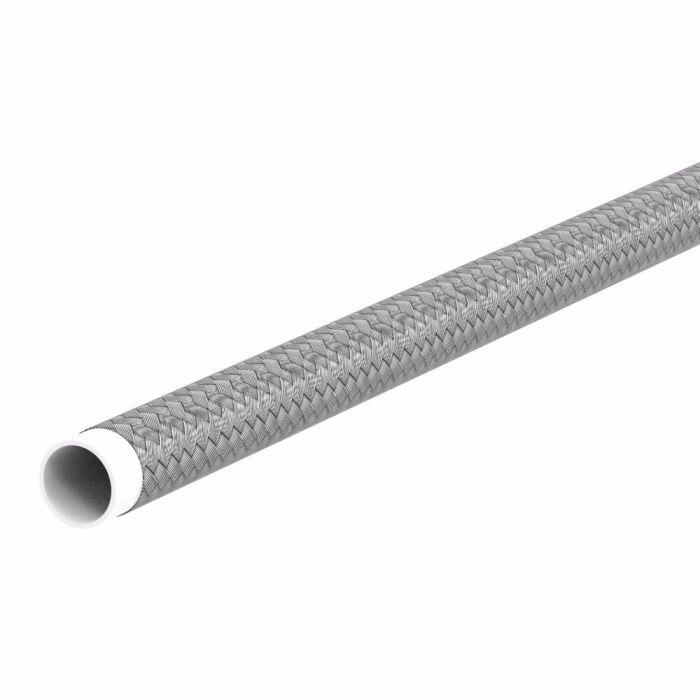

Danfoss / Eaton Hose, PTFE, NON-CONDUCTIVE, 100R14

Abrasion Resistance 28	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications SAE J517\|SAE 100R14A\|SAE 100R14B	Color Stainless Steel	Conductivity 13552	Construction Extruded with braided cover	Cover Material Stainless Steel	Dash Size -10	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Impulse Cycle Life 150000 cycle	Language English	Minimum Bend Radius 6.50	Minimum Bend Radius 6.5	Minimum Working Temperature -65	Product Width 0.65	Qualified Hose Fittings E series, Field Attachable, FC Series, Swage	Reinforcement Material None	Sub Brand Winner	Supplier Part Number EN-10TW500R	Tube Material PTFE	Product Weight 0.43 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a compressor discharge line that runs hot and sees a pretty wide swing in temps throughout the day. Would this hose hold up to that kind of duty without breaking down over time?

Question by: Ray S on Sep 8, 2025, 6:14 AM

PTFE tube material handles wide temperature swings well, and this hose is rated down to -65 degrees on the low end with a design built around compressor discharge as one of its primary uses. The stainless steel braided cover adds durability against the kind of wear you'd expect in that environment, and the construction is specifically noted to withstand vibration and impulsing, which is common on compressor lines. One thing worth knowing: it's not recommended for steam-cold water cycling applications, so if that's part of your setup, this wouldn't be the right fit. Straight compressor discharge without that cycling pattern is well within what this hose is built for.

Answer by: Customer Support on Sep 10, 2025, 6:58 AM
