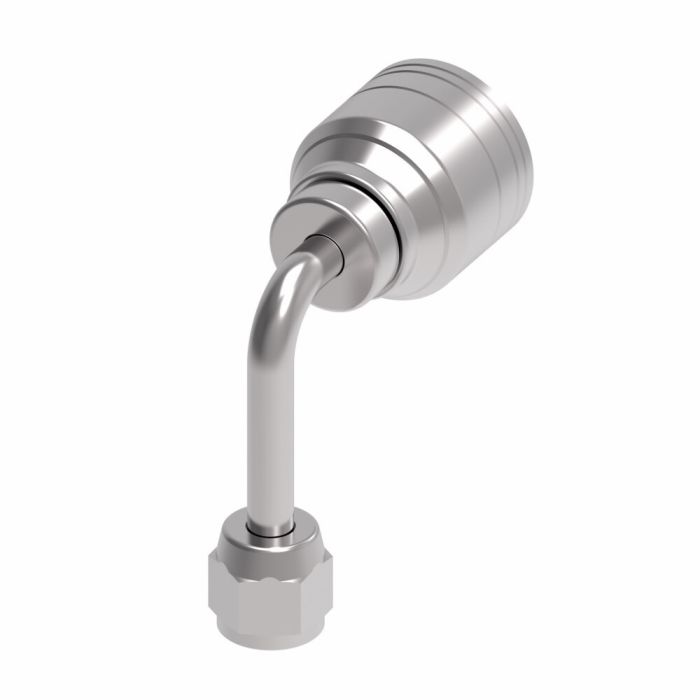

Aeroquip M/M F UNIV SWIV ELL

Application General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist	Drop Dimension 1.80	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Size 1 0.50	End Type 1 SAE 37	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -4	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Product Material Carbon Steel	Product Width 0.88	Sub Brand Aeroquip	Supplier Part Number 1AA5FJC4	Product Weight 0.12 lbs

Product Questions & Answers 1

Product Questions & Answers

what's the drop dimension on this elbow fitting, and is the -4 hose dash size right for half-inch line connections?

Question by: Hank W on Jul 17, 2025, 7:32 AM

The drop dimension on this fitting is 1.8 inches, and yes, the -4 dash size corresponds to a half-inch end size, so those two details line up correctly for that application. It's a 90-degree long drop swivel elbow with a Female JIC/SAE 37-degree seat on one end, carbon steel construction, and Dura-Kote plating that gives it solid corrosion resistance for general purpose low and medium pressure hydraulic work.

Answer by: Customer Support on Jul 19, 2025, 6:04 AM
