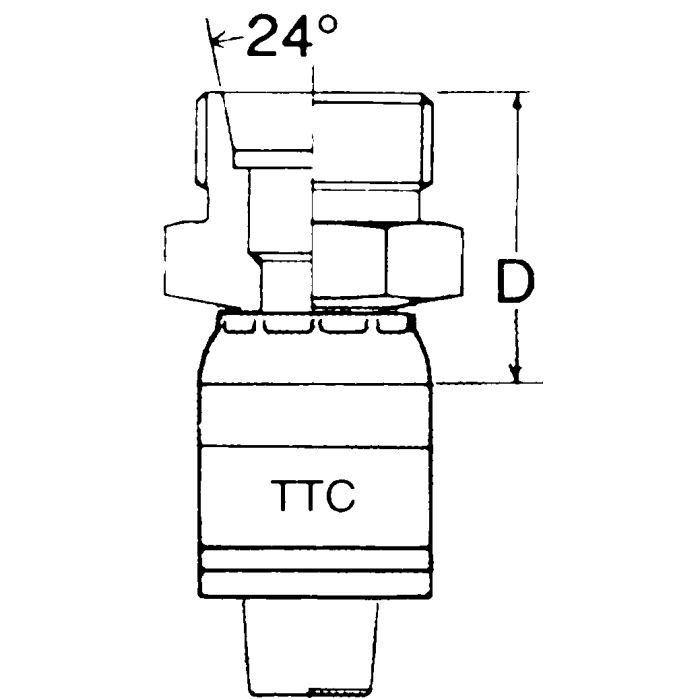

Global TTC 1 & 2 Wire Braid Steel Crimp Fittings, Male German DIN 3902 24 deg Flare Heavy Duty, Straight

Products

Model Number	Thread 1	Tube O.D.	Hose Size	D
1A10EK6	M22 x 1.5	14	-06	27.3
1A12EK8	M24 x 1.5	16	-08	28.3
1A16EK10	M30 x 2	20	-10	32.6
1A20EK12	M36 x 2	25	-12	35.3
1A25EK16	M42 x 2	30	-16	37.9
1A5EK4	M16 x 1.5	8	-04	24.1
1A6EK4	M18 x 1.5	10	-04	23.6
1A8EK6	M20 x 1.5	12	-06	25

Customers Who Bought This Item Also Bought

Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, 90 deg Elbow
SKU: 1AA16FJB12
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M22 x 1.5 Female German DIN 3902 24 deg Flare Heavy Duty Swivel, -06 Hose, 90 deg Elbow
SKU: 1A10DSB6
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Female German DIN 3902 24 deg Flare Heavy Duty Swivel, -04 Hose, 45 deg Elbow
SKU: 1A6DSA4
Global TTC 1 & 2 Wire Braid Steel Crimp Fitting, M18 x 1.5 Female German DIN 3902 24 deg Flare Heavy Duty Swivel, -04 Hose, Straight
SKU: 1A6DS4
Brass Adapter, 1/4-18 Female NPT To 5/8-18 Male SAE 45 deg Flare, 90 deg Elbow
SKU: 50X6
Steel Adapter, 1-11-1/2 Female NPT To 1-5/16-12 Female JIC 37 deg Flare Swivel, Straight
SKU: 2242-16-16S

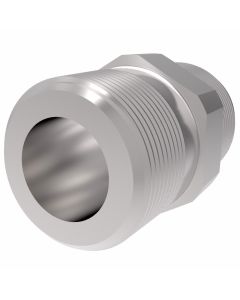

Steel Adapter, 1-1/4-11-1/2 Male NPT To 1-5/8-12 Male JIC 37 deg Flare, Straight
