Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, Straight

A 1.94	Alternate Part Numbers Alternate Part Number C1AX30, Alternate Part Number MI-00318922, Alternate Part Number MINO-00015F65173	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13556	End Size 1 0.75	End Type 1 SAE ORB	End Type 2 SAE 37	Minimum Working Temperature -40	Seal Part if Included 22617-8	Supplier Part Number 202702-8-12S	Thread 1 3/4-16	Thread 2 1-1/16-12	Thread Sealant No	Tube I.D. 1 0.39	Tube I.D. 2 0.61	Tube O.D. 0.75	Tube O.D. 0.75	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

got a port that’s 3/4-16 ORB on one side and a JIC flare line on the other. is this the straight adapter for that?

Question by: Roy P on Dec 10, 2025, 1:43 PM

For a straight ORB to JIC connection, it matches 3/4-16 male SAE O-ring boss on one end and 1-1/16-12 male JIC 37 degree flare on the other, both male.

Answer by: Customer Support on Dec 11, 2025, 5:18 PM

Will this adapter work for connecting a 3/4-16 SAE O-ring port to a 1-1/16-12 JIC flare fitting?

Question by: Carl P on Nov 19, 2025, 6:06 PM

Yes, this Eaton Aeroquip adapter is specifically designed to connect a 3/4-16 male SAE O-ring boss to a 1-1/16-12 male JIC 37-degree flare.

Answer by: Customer Support on Nov 21, 2025, 6:19 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
202702-10-12S	0.75	7/8-14	1-1/16-12	1.88
202702-10-16S	1	7/8-14	1-5/16-12	2.07
202702-10-4S	0.25	7/8-14	7/16-20	1.49
202702-10-6S	0.38	7/8-14	9/16-18	1.5
202702-10-8S	0.5	7/8-14	3/4-16	1.6
202702-12-10S	0.63	1-1/16-12	7/8-14	1.86
202702-12-12S	0.75	1-1/16-12	1-1/16-12	1.97
202702-12-16S	1	1-1/16-12	1-5/16-12	2.04
202702-12-6S	0.38	1-1/16-12	9/16-18	1.66
202702-12-8S	0.5	1-1/16-12	3/4-16	1.76
202702-16-12S	0.75	1-5/16-12	1-1/16-12	1.99
202702-16-16S	1	1-5/16-12	1-5/16-12	2.04
202702-16-20S	1.25	1-5/16-12	1-5/8-12	2.33
202702-16-8S	0.5	1-5/16-12	3/4-16	1.79
202702-20-12S	0.75	1-5/8-12	1-1/16-12	2.08
202702-20-16S	1	1-5/8-12	1-5/16-12	2.12
202702-20-20S	1.25	1-5/8-12	1-5/8-12	2.17
202702-24-16S	1	1-7/8-12	1-5/16-12	2.2
202702-24-24S	1.5	1-7/8-12	1-7/8-12	2.37
202702-4-4S	0.25	7/16-20	7/16-20	1.23
202702-4-6S	0.38	7/16-20	9/16-18	1.27
202702-5-6S	0.38	1/2-20	9/16-18	1.27
202702-6-4S	0.25	9/16-18	7/16-20	1.29
202702-6-6S	0.38	9/16-18	9/16-18	1.3
202702-6-8S	0.5	9/16-18	3/4-16	1.44
202702-8-12S	0.75	3/4-16	1-1/16-12	1.94
202702-8-4S	0.25	3/4-16	7/16-20	1.37
202702-8-6S	0.38	3/4-16	9/16-18	1.38

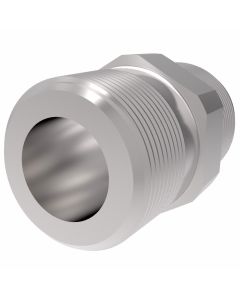

202702-8-8S	0.5	3/4-16	3/4-16	1.48
6400-04-02-O	0.25	5/16-24	7/16-20	1.13
202702-10-10S	0.63	7/8-14	7/8-14	1.7
202702-12-20S	1.25	1-1/16-12	1-5/8-12	2.3
202702-16-10S	0.63	1-5/16-12	7/8-14	1.89
202702-20-24S	1.5	1-5/8-12	1-7/8-12	2.53
202702-24-20S	1.25	1-7/8-12	1-5/8-12	2.24
202702-4-8S	0.5	7/16-20	3/4-16	1.49
202702-5-5S	0.31	1/2-20	1/2-20	1.23
202702-6-10S	0.63	9/16-18	7/8-14	1.71
202702-8-10S	0.63	3/4-16	7/8-14	1.64
6400-04-03-O	0.25	3/8-24	7/16-20	1.17
6400-04-05-O	0.25	1/2-20	7/16-20	1.23
6400-04-12-O	0.25	1-1/16-12	7/16-20	1.65
6400-05-04-O	0.31	7/16-20	1/2-20	1.24
6400-08-05-O	0.5	1/2-20	3/4-16	1.52
6400-16-08-O	1	3/4-16	1-5/16-12	1.89
