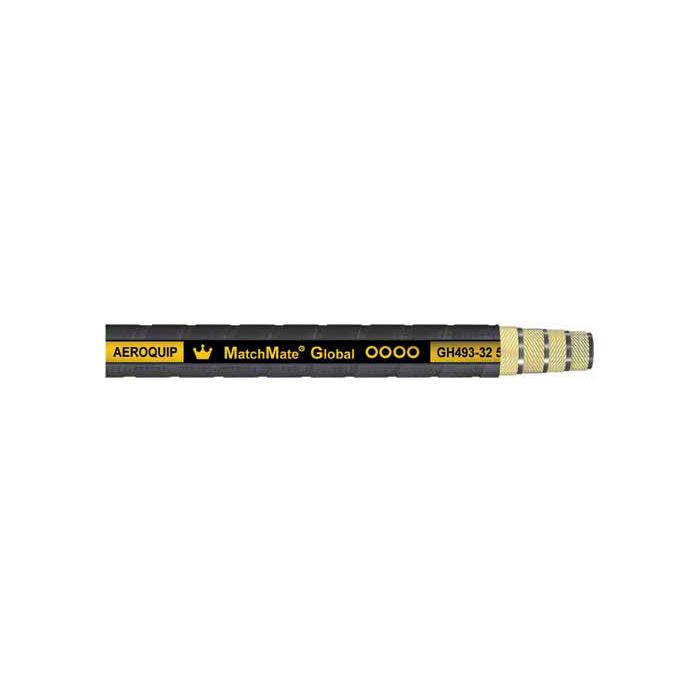

Four Heavy Spiral Wire SAE 100R12 Hose
Application |
Hydraulic system service with petroleum and water-base fluids, for general industrial service. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
Construction |
Synthetic rubber tube, 4 spiral reinforcement and black synthetic rubber cover. |
Note |
-6 size approved for 10,000 psi max. operating pressure for static jack hose applications. |
Temperature Range |
-40°F. to +260°F. |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
| GH493-20 | 1.25 | 1.83 | 4500 | 16.54 | Rolls Only |
|
||
| GH493-12 | 0.75 | 1.2 | 5500 | 9.45 | Rolls Only |
|
||
| GH493-16 | 1 | 1.48 | 5100 | 11.81 | Rolls Only |
|
||
| GH493-6 | 0.38 | 0.79 | 6500 | 4.92 | Rolls Only |
|
||
| GH493-10 | 0.63 | 1.11 | 6000 | 7.87 | Rolls Only |
|
||
| GH493-24 | 1.5 | 2.12 | 4000 | 19.68 | Rolls Only |
|
||
| GH493-32 | 2 | 2.64 | 4000 | 25.2 | Rolls Only |
|
||
| GH493-8 | 0.5 | 0.92 | 6000 | 7.09 | Rolls Only |
|
