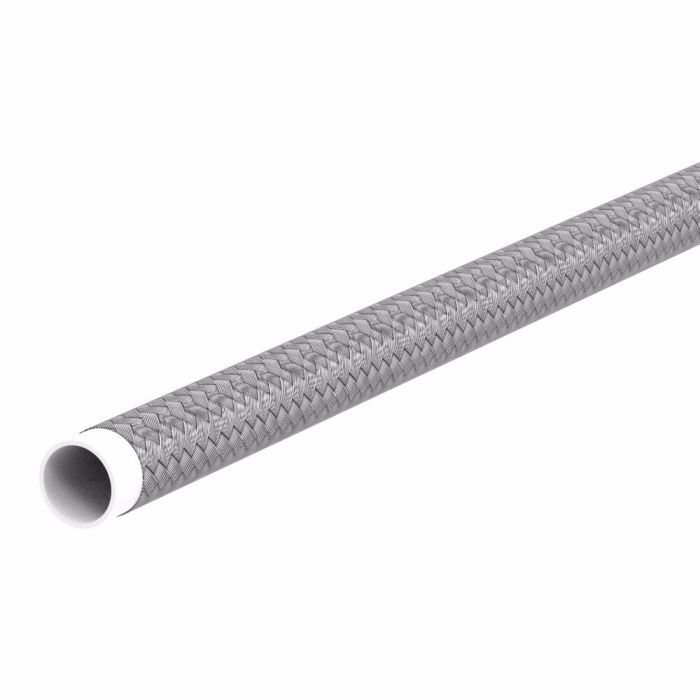

DANFOSS / EATON WINNER PTFE 100R14 HOSE 3/8

Abrasion Resistance 28	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications SAE 100R14B\|SAE J517\|SAE 100R14A	Color Stainless Steel	Conductivity 13552	Construction Extruded with braided cover	Cover Material Stainless Steel	Dash Size -6	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Impulse Cycle Life 150000 cycle	Language English	Minimum Bend Radius 4	Minimum Bend Radius 4	Minimum Working Temperature -65	Product Width 0.44	Qualified Hose Fittings E series, Field Attachable, FC Series, Swage	Reinforcement Material None	Sub Brand Winner	Supplier Part Number EN-6TW	Tube Material PTFE	Product Weight 0.26 lbs

Product Questions & Answers 2

Product Questions & Answers

hose is rated for chemical service, does that include compressor discharge lines too, or just liquid chemical transfer?

Question by: Lynn D on Mar 23, 2026, 12:36 PM

Compressor discharge is actually one of the primary applications this hose was built for. The extruded PTFE tube material holds up against virtually all chemical exposures and handles the heat and pressure cycling that comes with discharge service. It's also rated to withstand vibration and impulsing, which makes it a solid fit for compressor lines where pulsation is a constant factor.

Answer by: Customer Support on Mar 25, 2026, 8:22 AM
