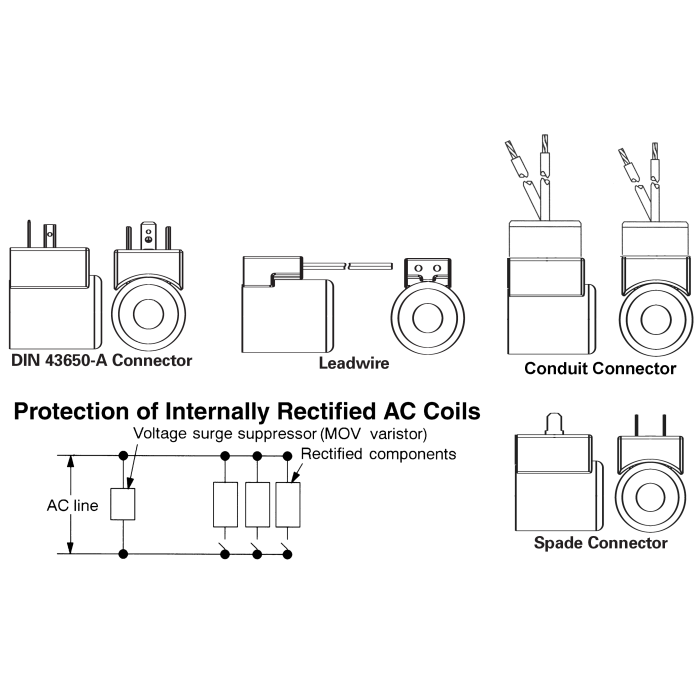

Cartridge Valve Coils

Products

Part Number	Model Number	Series	Voltage	Connector Type	Features
02-178104	SC024SPJ00	J Series 20 Watt	24VAC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
02-178106	SC120APJ00	J Series 20 Watt	120VAC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
300AA00009A	MCSCS012DQ000010	S Series 20 Watt	12VDC	1/4" Spade	Internally rectified\|Compact design\|Continuous duty
300AA00081A	MCSCJ012DG000010	J Series 20 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00082A	MCSCJ024DG000010	J Series 20 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00085A	MCSCJ115AG000010	J Series 20 Watt	120VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
507848	507848	R Series 30 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
02-178078	SC012DPJ00	J Series 20 Watt	12VDC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
02-178079	SC024DPJ00	J Series 20 Watt	24VDC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
300AA00001A	MCSCS012DG000010	S Series 20 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00005A	MCSCS115AG000010	S Series 20 Watt	115VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00042A	MCSCP024DG000010	P Series 23 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00045A	MCSCP115AG000010	P Series 23 Watt	115VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00046A	MCSCP230AG000010	P Series 23 Watt	230VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00086A	MCSCJ230AG000010	J Series 20 Watt	230VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00095A	MCSCJ012DW0B0010	J Series 20 Watt	12VDC	Flying Lead	Internally rectified\|Compact design\|Continuous duty
300AA00096A	MCSCJ024DW0B0010	J Series 20 Watt	24VDC	Flying Lead	Internally rectified\|Compact design\|Continuous duty
300AA00121A	MCSCH012DG000010	H Series 26 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00122A	MCSCH024DG000010	H Series 26 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
507847	507847	R Series 30 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty

Customers Who Bought This Item Also Bought

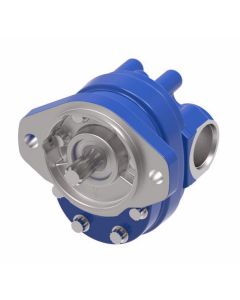

Series 26 Gear Pump, 0.58 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE-12 Side Inlet, SAE-10 Side Outlet Ports, CW Rotation.
SKU: 26003-RZJ
Danfoss / Eaton 12v coil
SKU: 300AA00328A

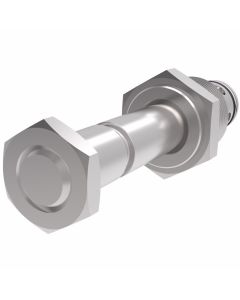

SV4-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included
