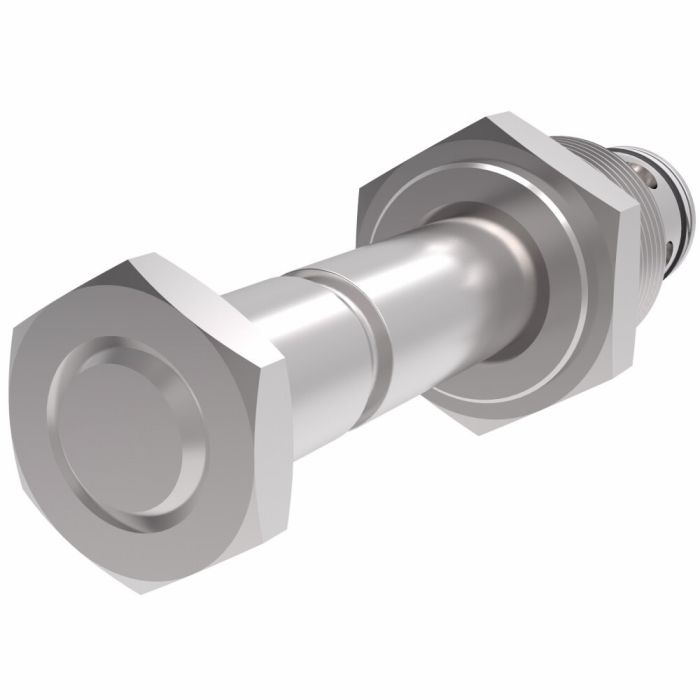

SV4-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Coil Not Included	Coil Series J series, 23 W coils	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 227 L/min (60 USgpm)\|Reliable, economical and compact\|Hardened and ground steel	Housing None	Installation Type Screw-in Cartridge	Leakage Standard	Manual Override Option No	Number of Housing Ports 2	Number of Valve Ports 2	Operation Direct Acting	Port Type Cartrige Only	Recommended Filtration Level 18/16/13	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style 2-Way 2-Position Normally Closed	Supplier Part Number 565537	Switch Connector No	Valve Material Cartridge only	Product Weight 0.58 lbs	Alternate Part Numbers Alternate Part Number 109379-001, Alternate Part Number C1BT22, Alternate Part Number SV410C000

Product Questions & Answers 2

Product Questions & Answers

What kind of applications does this valve work best with?

Question by: Dustin M on Nov 11, 2025, 10:27 AM

These valves are reliable for harvesters, refuse haulers, plus mobile and industrial systems.

Answer by: Customer Support on Nov 12, 2025, 6:09 PM

coil ain't included with this one right? what series do i need to get for it?

Question by: Roy H on May 31, 2025, 1:13 PM

Correct, the coil is sold separately. You'll need a J Series 20 Watt coil to pair with this valve. Worth noting that if your model uses a DIN 43650 connector, you'll also need a solenoid connector, which is required separately as well. The cartridge cavity and housing are not included either, so make sure you've got a C-10-2 cavity size on hand before you put this together.

Answer by: Customer Support on Jun 2, 2025, 6:08 AM
