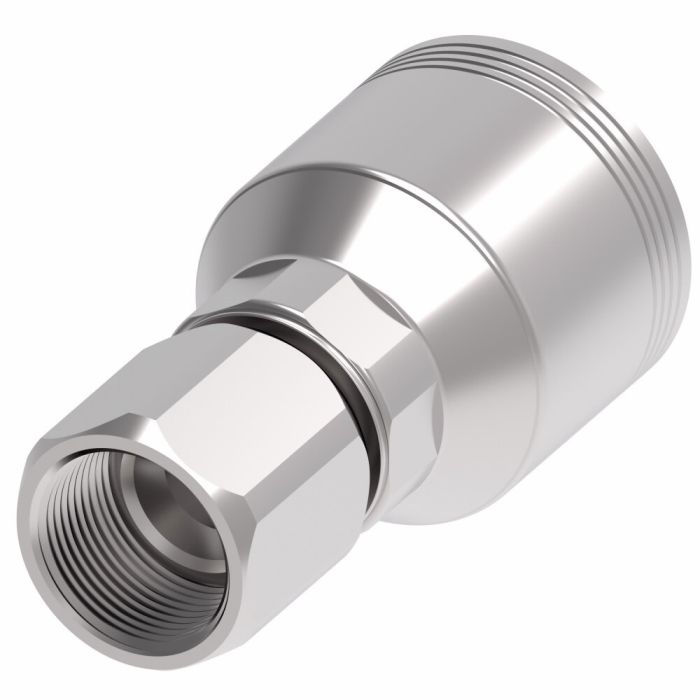

DANFOSS / EATON FITTING 4-SPRL SAE 37

Alternate Part Numbers Alternate Part Number MI-07744018, Alternate Part Number MINO-00015X01458	Certifications SAE J1176	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Size 1 0.56	End Type 1 JIC 37	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hex Size 2 0.69	Hose Dash Size -6	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 1.16	Sub Brand None	Supplier Part Number 4SA6FJ6	Product Weight 0.16 lbs

Product Questions & Answers 2

Product Questions & Answers

I need a JIC 37 fitting, but I keep messing up the size. How do I measure this to make sure it fits my -6 hose?

Question by: Freddie O on Dec 3, 2025, 12:32 PM

This fitting is designed for a -6 hose, which corresponds to an end size of 0.5625 inches.

Answer by: Customer Support on Dec 5, 2025, 6:29 AM

fitting says it's a -6 hose dash size with a 37 degree JIC female end -- just want to make sure that lines up with standard half-inch JIC swivel connections before I order a handful of these

Question by: Gary M on May 31, 2025, 9:43 PM

The end size on this fitting is 0.5625 inches, which is your standard 9/16 thread used with -6 JIC connections. The female swivel end is cut at 37 degrees per JIC spec, so it'll mate up correctly with standard male JIC 37-degree fittings. The swivel design also makes it a lot easier to get everything lined up without twisting the hose during installation.

Answer by: Customer Support on Jun 2, 2025, 4:59 PM
