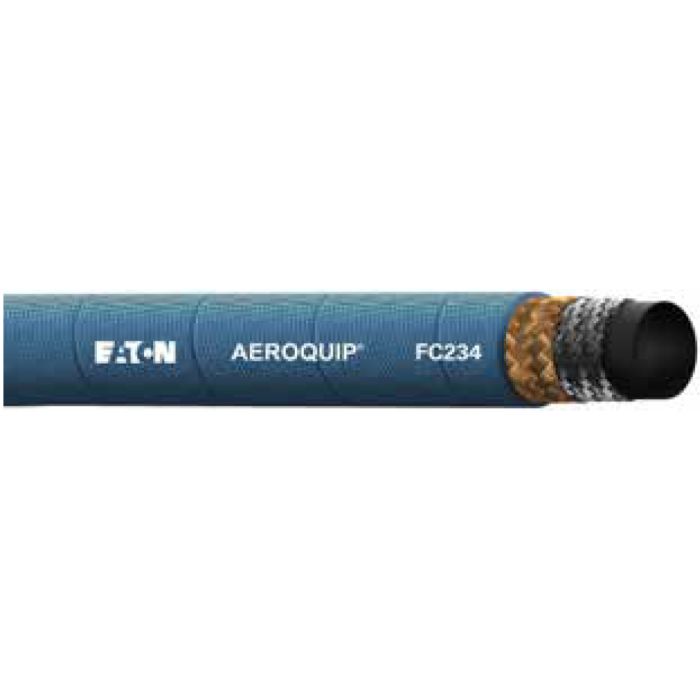

USCG Type A1 Blue Cover Fuel Hose
Application |
Diesel fuel, gasoline, hot lube oil and water. A superior hose for marine fuel systems. Meets SAE J1527 Type A1 (Flame resistant, increased permeation resistance). FC234 is an SAE J1942-1 (May 2002) qualified hose for marine fuel lines, no firesleeve required. |
Construction |
AQP® elastomer tube, brass plated steel wire reinforcement, braided refractory insulation and blue AQP® elastomer cover. |
Temperature Range |
-40°F to +300°F. |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Vacuum Service | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| FC234-05 | 0.25 | 0.58 | 1500 | 1 | 28 | 410-540 |
|
||
| FC234-06 | 0.31 | 0.68 | 1500 | 1.25 | 28 | 310-400 |
|
||
| FC234-08 | 0.41 | 0.76 | 1250 | 1.75 | 28 | 449-590 |
|
||
| FC234-10 | 0.5 | 0.94 | 1250 | 2.25 | 28 | 310-400 |
|
||
| FC234-12 | 0.62 | 1.08 | 750 | 2.75 | 20 | 230-300 |
|
||
| FC234-16 | 0.88 | 1.24 | 400 | 3.5 | 16 | 180-230 |
|
