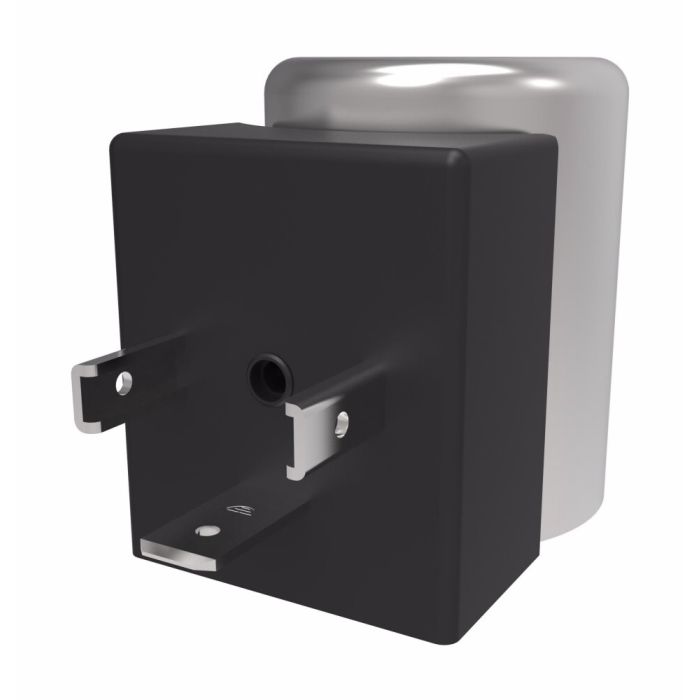

Cartridge Valve Coil, J Series 20 Watt, 12VDC, DIN 43650. Internally rectified|Compact design|Continuous duty

Application Harvesters, refuse haulers, mobile and industrial applications	Coil Size 10,12,16 and 20	Connector Type DIN 43650	Duty Rating Continuous from 85% to 110% of nominal voltage	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Encapsulent Glass filled nylon	Environmental Protection IP65	Features Internally rectified\|Compact design\|Continuous duty	Flying Leads Integrated	Hazardous Environmental Rating Yes	Installation Type Drop-in	Leakage Standard	Operation Electrically Operated	Pressure level valve control 210	Series J Series 20 Watt	Special Features None	Style Toughcoil	Supplier Part Number 300AA00081A	Voltage 12VDC	Voltage Type 12307	Product Weight 0.59 lbs	Alternate Part Numbers Alternate Part Number C1JY58, Alternate Part Number MCSCJ012DG000010

Product Questions & Answers 2

Product Questions & Answers

got a 12 volt setup on a mobile machine, is this coil the right voltage and connector style

Question by: Ricky T on Dec 25, 2025, 9:49 AM

For a 12V DC system, it matches at 12VDC and it uses a DIN 43650 connector type. It is also internally rectified and rated for continuous duty when run from 85% to 110% of nominal voltage.

Answer by: Customer Support on Dec 26, 2025, 9:37 PM

Will this coil work on my mobile harvester?

Question by: Larry E on Jun 21, 2025, 9:06 PM

Designed for mobile and industrial applications like harvesters and refuse haulers, this coil should be compatible.

Answer by: Customer Support on Jun 23, 2025, 6:41 PM

Similar Products

Part Number	Model Number	Series	Voltage	Connector Type	Features
02-178104	SC024SPJ00	J Series 20 Watt	24VAC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
02-178106	SC120APJ00	J Series 20 Watt	120VAC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
300AA00009A	MCSCS012DQ000010	S Series 20 Watt	12VDC	1/4" Spade	Internally rectified\|Compact design\|Continuous duty
300AA00081A	MCSCJ012DG000010	J Series 20 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00082A	MCSCJ024DG000010	J Series 20 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00085A	MCSCJ115AG000010	J Series 20 Watt	120VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
507848	507848	R Series 30 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
02-178078	SC012DPJ00	J Series 20 Watt	12VDC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
02-178079	SC024DPJ00	J Series 20 Watt	24VDC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
300AA00001A	MCSCS012DG000010	S Series 20 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00005A	MCSCS115AG000010	S Series 20 Watt	115VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00042A	MCSCP024DG000010	P Series 23 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00045A	MCSCP115AG000010	P Series 23 Watt	115VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00046A	MCSCP230AG000010	P Series 23 Watt	230VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00086A	MCSCJ230AG000010	J Series 20 Watt	230VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00095A	MCSCJ012DW0B0010	J Series 20 Watt	12VDC	Flying Lead	Internally rectified\|Compact design\|Continuous duty
300AA00096A	MCSCJ024DW0B0010	J Series 20 Watt	24VDC	Flying Lead	Internally rectified\|Compact design\|Continuous duty
300AA00121A	MCSCH012DG000010	H Series 26 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
300AA00122A	MCSCH024DG000010	H Series 26 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
507847	507847	R Series 30 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
