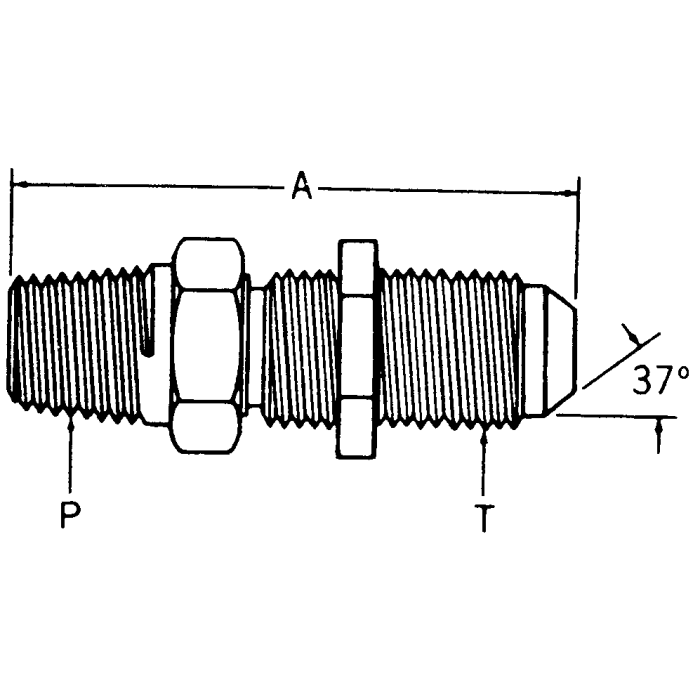

Steel Adapter, 1/2-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, Straight Bulkhead

A 2.57	Alternate Part Numbers Alternate Part Number C1DW84, Alternate Part Number MI-00318445, Alternate Part Number MINO-00028F65037	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2706-08-08	Thread 1 1/2-14	Thread 2 3/4-16	Thread Sealant No	Tube O.D. 0.50	Product Weight 0.24 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a pipe thread port up to a JIC hose end, is this the right adapter?

Question by: Lynn K on Jul 31, 2025, 2:13 PM

For connecting a 1/2-14 male NPT to a 3/4-16 male JIC 37 degree flare, this straight bulkhead adapter matches those two thread ends.

Answer by: Customer Support on Aug 2, 2025, 6:08 AM

got a panel i need to run a fitting through, does this one come with the locknut already, or is that something i'd have to track down separate?

Question by: Neil P on Feb 28, 2026, 7:49 AM

The locknut is included with this adapter. That bulkhead setup needs it to clamp securely against the panel, so Brennan builds it right into the assembly. You won't need to source anything extra to get a solid, stable mount.

Answer by: Customer Support on Mar 2, 2026, 6:02 AM

got a hose end with a 3/4-16 jic on it and my port is 1/2 npt. is this the right straight bulkhead piece to tie those together

Question by: Floyd J on Jul 28, 2025, 12:28 PM

For tying those two thread types together through a panel, this adapter matches a 1/2-14 male NPT on one side and a 3/4-16 male JIC 37 degree flare on the other, in a straight bulkhead style.

Answer by: Customer Support on Jul 30, 2025, 6:39 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
2706-08-08	0.5	1/2-14	3/4-16	2.57
2240-12-12S	0.75	3/4-14	1-1/16-12	2.92
2240-16-16S	1	1-11-1/2	1-5/16-12	3.11
2240-4-4S	0.25	1/4-18	7/16-20	2.03
2240-4-6S	0.38	1/4-18	9/16-18	2.12
2240-6-8S	0.5	3/8-18	3/4-16	2.36
2240-8-10S	0.63	1/2-14	7/8-14	2.71
2706-06-06	0.38	3/8-18	9/16-18	2.19

Customers Who Bought This Item Also Bought

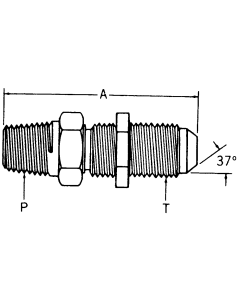

Steel Adapter, 3/8-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, Straight Bulkhead
