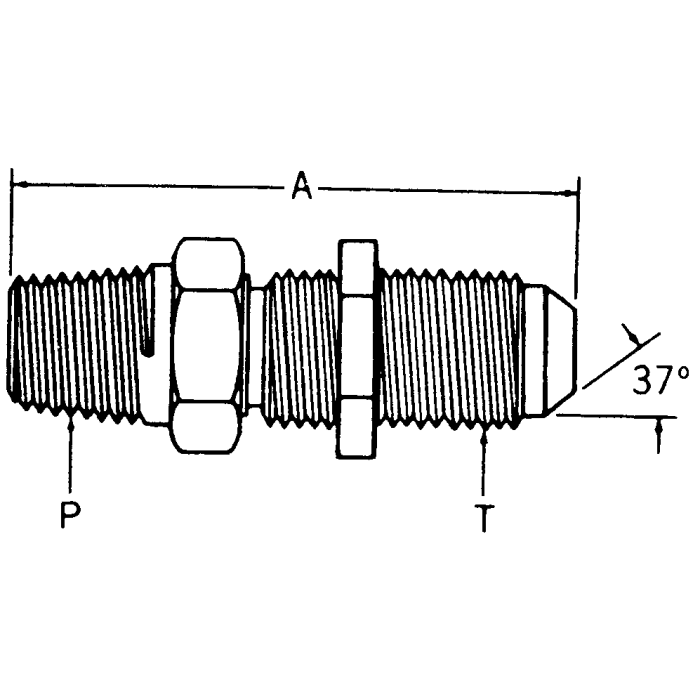

Steel Adapter, 3/8-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, Straight Bulkhead

A 2.19	Alternate Part Numbers Alternate Part Number C1DW83	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2706-06-06	Thread 1 3/8-18	Thread 2 9/16-18	Thread Sealant No	Tube O.D. 0.38	Product Weight 0.13 lbs

Product Questions & Answers 1

Product Questions & Answers

got a panel mount situation on a hydraulic line and need to go from NPT pipe thread over to JIC flare, this part do that?

Question by: Marvin A on Dec 2, 2025, 1:15 PM

That's exactly what it's built for. One end is 3/8-18 male NPT and the other is 9/16-18 male JIC 37 degree flare, so it bridges those two thread types in a single fitting. The bulkhead design means it's meant to pass through a panel or partition and lock in place, which keeps the connection anchored rather than floating in line. The lock nut is included for that purpose. Steel construction holds up well in high-pressure hydraulic service.

Answer by: Customer Support on Dec 4, 2025, 6:09 AM

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
2706-08-08	0.5	1/2-14	3/4-16	2.57
2240-12-12S	0.75	3/4-14	1-1/16-12	2.92
2240-16-16S	1	1-11-1/2	1-5/16-12	3.11
2240-4-4S	0.25	1/4-18	7/16-20	2.03
2240-4-6S	0.38	1/4-18	9/16-18	2.12
2240-6-8S	0.5	3/8-18	3/4-16	2.36
2240-8-10S	0.63	1/2-14	7/8-14	2.71
2706-06-06	0.38	3/8-18	9/16-18	2.19

Customers Who Bought This Item Also Bought

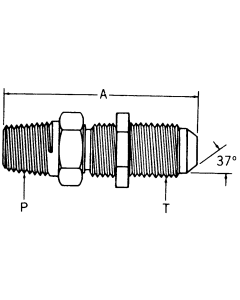

Steel Adapter, 1/2-14 Male NPT To 3/4-16 Male JIC 37 deg Flare, Straight Bulkhead
