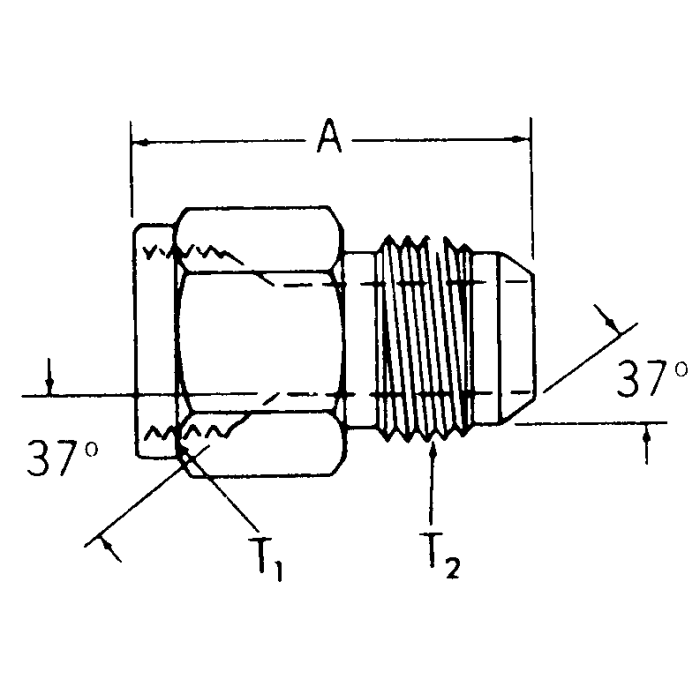

main product photo

Steel Adapter, 1-1/16-12 Female JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight

Ask A Question
A
1.50
Alternate Part Numbers
Alternate Part Number A221501-12-4S, Alternate Part Number C1EF56, Alternate Part Number MI-00315814, Alternate Part Number MINO-00028F63937
Brand
Brennan Industries Inc
Brand
Brennan Industries
Pack Size
1.00
UOM
EA
Supplier Part Number
2406-12-04
Thread 1
1-1/16-12
Thread 2
7/16-20
Thread Sealant
No
Tube O.D.
0.25
Product Weight
0.21 lbs
Product Questions & Answers 2

Product Questions & Answers

got a #12 female JIC on one end and need to step down to a #4 male JIC, this straight adapter gonna do that?
Question by: Sheila J on Apr 27, 2025, 2:17 PM
That's what this fitting handles. One end is a 1-1/16-12 female JIC 37-degree flare, the other is a 7/16-20 male JIC 37-degree flare. Both sides use the same 37-degree flare seating, so the connection relies on metal-to-metal contact at the flare rather than thread sealant. Worth noting that no sealant comes with it, and none should be needed given the flare-style seating on both ends.
Answer by: Customer Support on Apr 29, 2025, 11:24 AM
What size tubing does this adapter work with?
Question by: Roy H on May 4, 2025, 6:59 PM
This adapter is compatible with tubing that has a 0.25-inch outer diameter.
Answer by: Customer Support on May 6, 2025, 5:04 PM

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Buy Now
2406-04-06 0.38 7/16-20 9/16-18 1.01
2406-06-08 0.5 9/16-18 3/4-16 1.28
2406-08-10 0.63 3/4-16 7/8-14 1.29
2406-10-04 0.25 7/8-14 7/16-20 1.47
2215-10-12S 0.75 7/8-14 1-1/16-12 1.74
2215-10-8S 0.5 7/8-14 3/4-16 1.53
2215-12-10S 0.63 1-1/16-12 7/8-14 1.73
2215-12-16S 1 1-1/16-12 1-5/16-12 2
2215-16-20S 1.25 1-5/16-12 1-5/8-12 2.3
2406-04-03 0.25 7/16-20 3/8-24 1.05
2406-05-04 0.25 1/2-20 7/16-20 1.16
2406-05-06 0.38 1/2-20 9/16-18 1.17
2406-08-06 0.5 3/4-16 9/16-18 1.31
2406-12-04 0.25 1-1/16-12 7/16-20 1.5
2406-14-12 0.75 1-3/16-12 1-1/16-12 1.8
2406-20-12 0.75 1-5/8-12 1-1/16-12 2
2406-20-24 1.25 1-5/8-12 1-7/8-12 2.16
