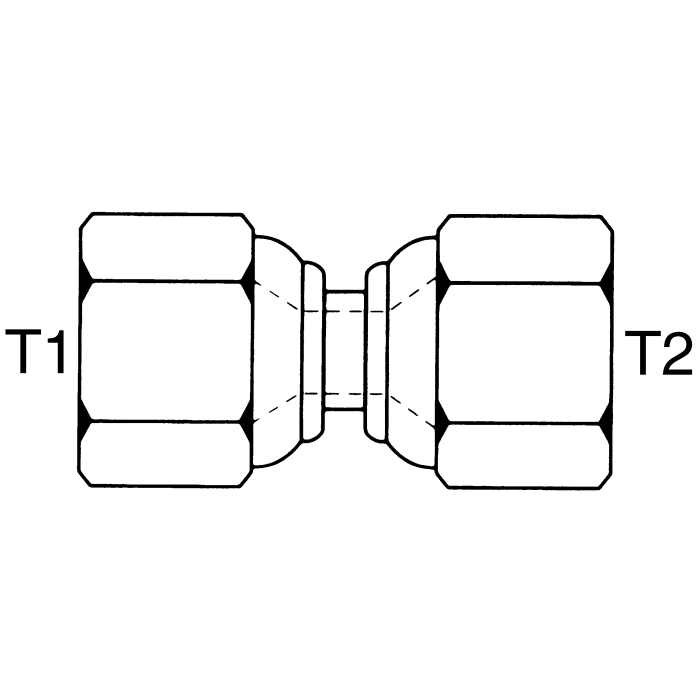

Steel Adapter, 7/16-20 Female JIC 37 deg Flare Swivel To 7/16-20 Female JIC 37 deg Flare Swivel, Straight

Alternate Part Numbers Alternate Part Number C1ZW99, Alternate Part Number MI-02206377, Alternate Part Number MINO-03671X85066	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9026-04-04	Thread 1 7/16-20	Thread 2 7/16-20	Thread Sealant No	Tube O.D. 0.25	Product Weight 0.05 lbs

Product Questions & Answers

Hey, just want to make sure this'll fit right. It's going on a machine we got in '98, still uses JIC fittings.

Question by: Travis W on Jul 1, 2025, 1:18 PM

This adapter uses 7/16-20 female JIC 37-degree flare swivels on both ends, so if your existing fittings match that, it should be a direct fit.

Answer by: Customer Support on Jul 3, 2025, 9:03 AM

Model Number	Tube O.D.	Thread 1	Thread 2
9026-06-06	0.38	9/16-18	9/16-18
9026-04-04	0.25	7/16-20	7/16-20
9026-08-08	0.5	3/4-16	3/4-16
9026-10-10	0.63	7/8-14	7/8-14
9026-12-12	0.75	1-1/16-12	1-1/16-12
9026-16-16	1	1-5/16-12	1-5/16-12
