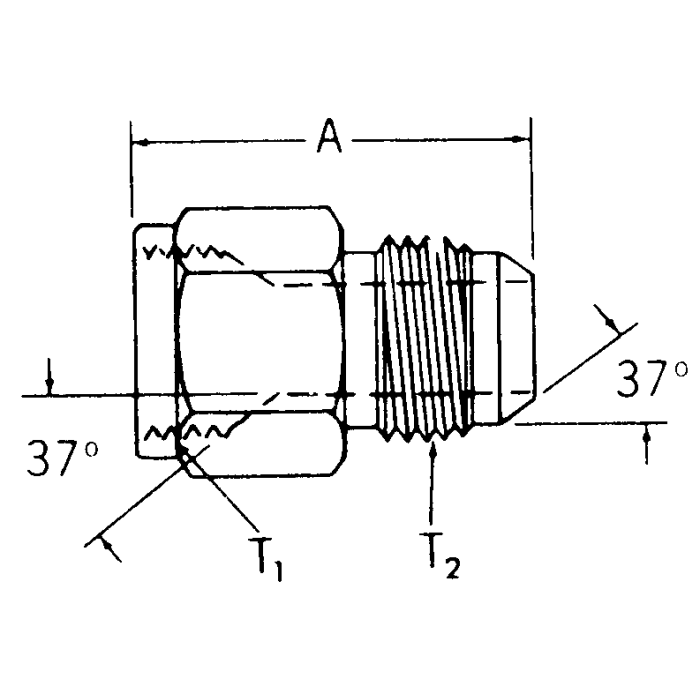

Steel Adapter, 1/2-20 Female JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight

A 1.16	Alternate Part Numbers Alternate Part Number 221501-5-4S, Alternate Part Number C1DV86, Alternate Part Number MI-02039865, Alternate Part Number MINO-00028J26384	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2406-05-04	Thread 1 1/2-20	Thread 2 7/16-20	Thread Sealant No	Tube O.D. 0.25	Product Weight 0.05 lbs

Product Questions & Answers

got a line with a 1/2-20 female JIC, will this adapter step it down to a 7/16-20 male JIC and still be the 37 degree flare style?

Question by: Diane W on Mar 8, 2026, 1:30 PM

Function-wise, it is a straight JIC 37 degree flare union adapter that goes from 1/2-20 female JIC on one side to 7/16-20 male JIC on the other.

Answer by: Customer Support on Mar 9, 2026, 5:28 PM

Model Number	Tube O.D.	Thread 1	Thread 2	A
2406-04-06	0.38	7/16-20	9/16-18	1.01
2406-06-08	0.5	9/16-18	3/4-16	1.28
2406-08-10	0.63	3/4-16	7/8-14	1.29
2406-10-04	0.25	7/8-14	7/16-20	1.47
2215-10-12S	0.75	7/8-14	1-1/16-12	1.74
2215-10-8S	0.5	7/8-14	3/4-16	1.53
2215-12-10S	0.63	1-1/16-12	7/8-14	1.73
2215-12-16S	1	1-1/16-12	1-5/16-12	2
2215-16-20S	1.25	1-5/16-12	1-5/8-12	2.3
2406-04-03	0.25	7/16-20	3/8-24	1.05
2406-05-04	0.25	1/2-20	7/16-20	1.16
2406-05-06	0.38	1/2-20	9/16-18	1.17
2406-08-06	0.5	3/4-16	9/16-18	1.31
2406-12-04	0.25	1-1/16-12	7/16-20	1.5
2406-14-12	0.75	1-3/16-12	1-1/16-12	1.8
2406-20-12	0.75	1-5/8-12	1-1/16-12	2
2406-20-24	1.25	1-5/8-12	1-7/8-12	2.16
