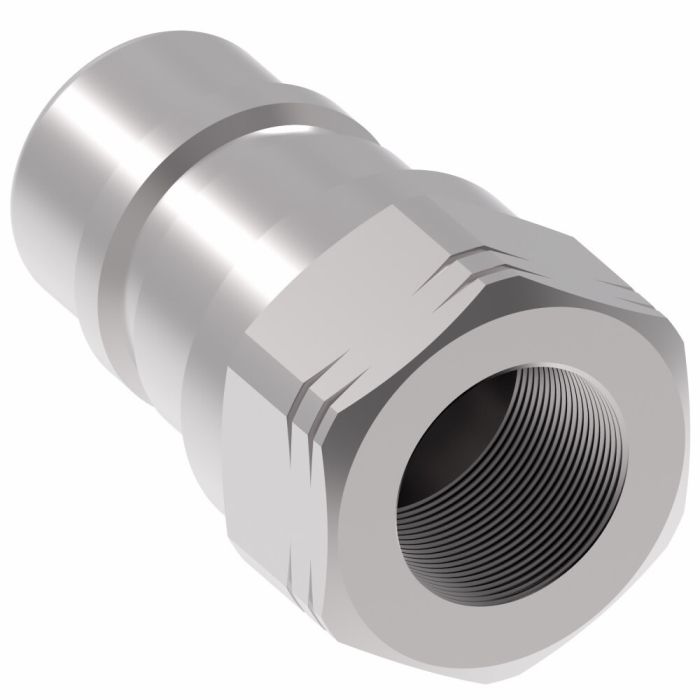

HK Series Industrial Interchange Series B Stainless Steel Hydraulic Quick Disconnect, Male Half, -04 Coupling, 1/4-18 Female NPT

A 1.52	Air Inclusion Max 1.20 Cubic_centimeter	Application Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical	Coupling Size -04	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Size 1 0.25	End Size 2 0.25	End Type 1 Push to Connect	End Type 2 NPTF	Fluid Loss 0.90 Cubic_centimeter	Minimum Working Temperature -40	Safety locking Mechanism None	Seal Material Buna-N	Supplier Part Number LL2K16	Thread 1 1/4-18	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1LC69, Alternate Part Number MI-00285616, Alternate Part Number MINO-00402F32484	Product Weight 0.08 lbs

Product Questions & Answers 4

Product Questions & Answers

Will this quick disconnect work with other brands that meet the ISO 7241/1 Series B standard?

Question by: Floyd H on Mar 1, 2026, 8:17 AM

Because it is an industrial interchange coupling conforming dimensionally to ISO standard 7241/1 Series B, this should work fine with other brands that also meet that spec.

Answer by: Customer Support on Mar 2, 2026, 11:18 AM

Trying to replace an old Series B style plug, is this one the stainless male half with a 1/4-18 female NPT port?

Question by: Bobby J on May 11, 2025, 2:46 PM

It matches the Industrial Interchange ISO 7241/1 Series B style and it is the male half. The threaded end is 1/4-18 female NPT and the coupling size is -04.

Answer by: Customer Support on May 13, 2025, 6:11 AM

What kind of seal comes standard on this coupling, and how cold can it actually get before that seal starts giving trouble?

Question by: Jerry F on May 6, 2025, 2:20 PM

Buna-N is the standard seal material on this one. It holds up from -40 degrees F all the way up to 250 degrees F, so if you're running equipment through hard winters or in heated fluid applications, you've got solid coverage on both ends of that range. If your setup pushes past 250 degrees, there are other seal options available for this series, including EPDM rated to 300 degrees and FKM rated to 400 degrees, so the platform gives you room to spec it correctly for hotter conditions.

Answer by: Customer Support on May 8, 2025, 11:21 AM
