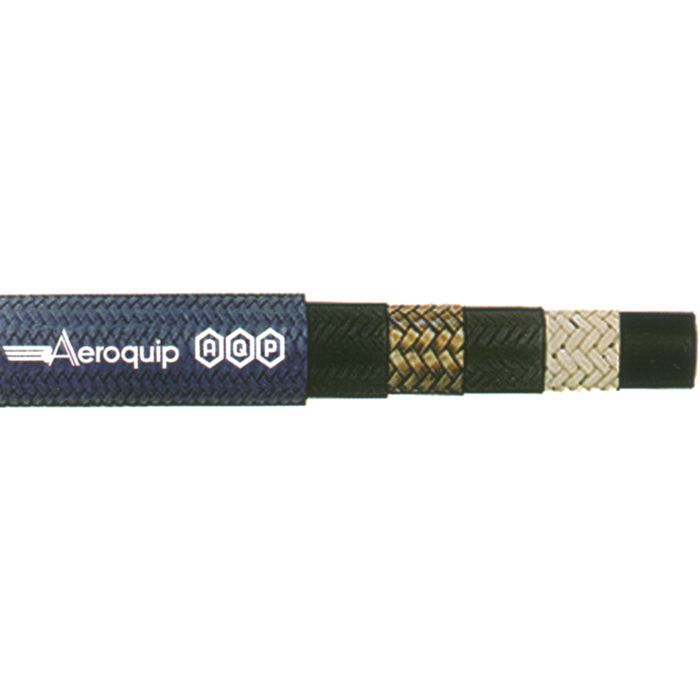

AQP Single Wire Braid Blue SAE 100R5 Hose
Application |
Hydraulics handling petroleum base fluids, air, gasoline, fuel and lubricating oils, fire resistant hydraulic fluids and other industrial fluids. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
Construction |
AQP® elastomer tube, polyester inner braid, single wire braid reinforcement and blue polyester braid cover. |
Temperature Range |
-55°F to +300°F except air +250°F |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Vacuum Service | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| FC300-16 | 0.88 | 1.27 | 800 | 7.38 | 20 | 170-210 |
|
||
| FC300-04 | 0.19 | 0.52 | 3000 | 3 | 28 | 490-640 |
|
||
| FC300-05 | 0.25 | 0.58 | 3000 | 3.38 | 28 | 390-510 |
|
||
| FC300-06 | 0.31 | 0.67 | 2250 | 4 | 28 | 300-390 |
|
||
| FC300-08 | 0.41 | 0.76 | 2000 | 4.62 | 28 | 450-600 |
|
||
| FC300-10 | 0.5 | 0.93 | 1750 | 5.5 | 28 | 300-390 |
|
||
| FC300-12 | 0.62 | 1.08 | 1500 | 6.5 | 28 | 230-300 |
|
||
| FC300-20 | 1.12 | 1.5 | 625 | 9 | 20 | Rolls Only |
|
||
| FC300-24 | 1.38 | 1.75 | 500 | 10.5 | 15 | Rolls Only |
|
||
| FC300-32 | 1.81 | 2.22 | 300 | 13.25 | 11 | Rolls Only |
|
||
| FC300-40 | 2.38 | 2.88 | 300 | 24 | 8 | Rolls Only |
|
