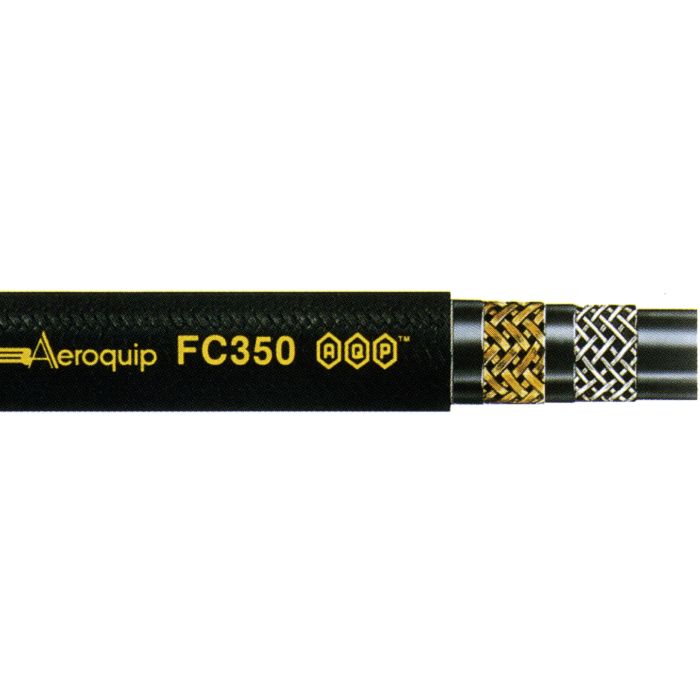

AQP Engine & Air Brake Black Polyester Braid Hose
Application |
Air, gasoline, fuel, lubricating oils and coolants. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
Construction |
AQP® elastomer tube, polyester inner braid and a single wire braid reinforcement, black polyester textile braided cover. |
Temperature Range |
-55°F to +300°F, except air +250°F. |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Vacuum Service | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| FC350-04 | 0.19 | 0.52 | 2000 | 0.75 | 28 | 500-650 |
|
||
| FC350-06 | 0.31 | 0.68 | 1500 | 1.25 | 28 | 320-420 |
|
||
| FC350-08 | 0.41 | 0.77 | 1250 | 1.75 | 28 | 450-600 |
|
||
| FC350-10 | 0.5 | 0.94 | 1250 | 2.25 | 28 | 310-400 |
|
||
| FC350-12 | 0.62 | 1.08 | 750 | 2.75 | 20 | 230-300 |
|
||
| FC350-16 | 0.88 | 1.23 | 400 | 3.5 | 15 | 180-240 |
|
||
| FC350-20 | 1.12 | 1.5 | 300 | 4.5 | 15 | 120-160 |
|
||
| FC350-24 | 1.38 | 1.75 | 250 | 5.5 | 11 | 100-150 |
|
