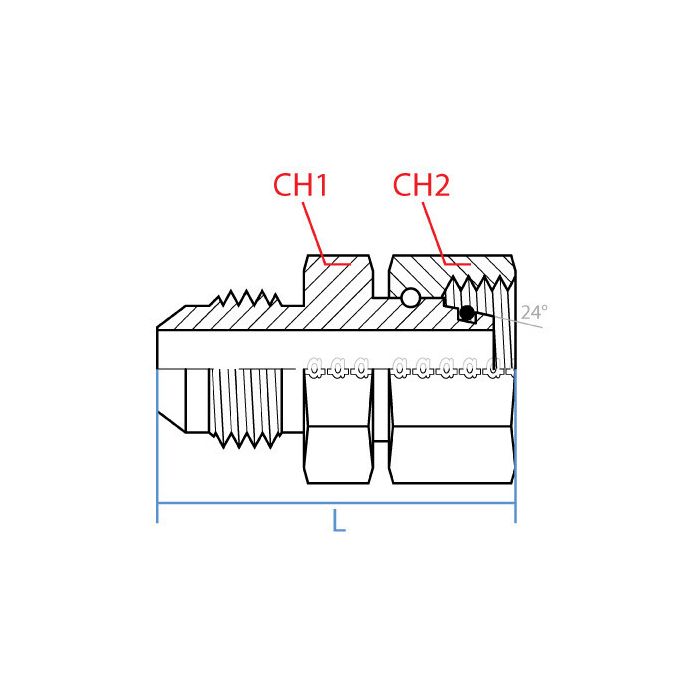

Mjic-Fem Metric Soft Seal

CH1 Width 36mm	CH2 Width 36mm	L Length 56.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M30 X 2.0	Side 2 Gender F	Side 2 Size L22	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07137940, Alternate Part Number MINO-03671X13416	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9197-16-L22-30	Product Weight 0.62 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a 1-5/16 - 12 UN JIC male end on my hydraulic line and need to tie into a M30 X 2.0 metric tube fitting on the other side. This the right adapter for that?

Question by: Phil M on Feb 13, 2026, 12:45 PM

That's exactly the crossover this adapter handles. One end is a JIC male at 1-5/16 - 12 UN and the other is a DIN tube female with M30 X 2.0 thread, so if those are your two connection points, this is a straight match. It's made by Adaptall, built from steel, and runs 56.5mm in total length with 36mm wrench width on both sides. No thread sealant needed either, which keeps the install clean and straightforward.

Answer by: Customer Support on Feb 15, 2026, 7:29 AM
