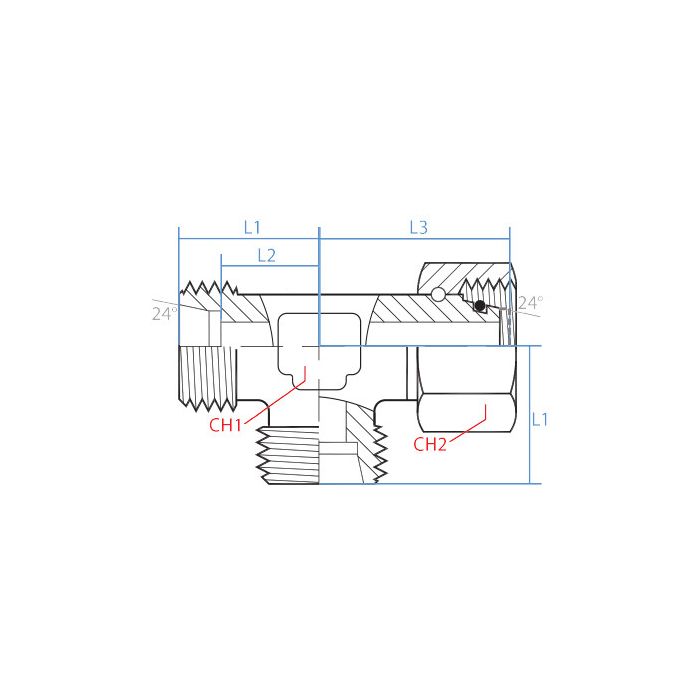

Din X F Din Swivel Run Tee

CH1 Width 27mm	CH2 Width 36mm	L1 Length 35mm	L2 Length 27.5mm	L3 Length 38.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size L22	Side 2 Type Din Tube	Side 3 Callout M30 X 2.0	Side 3 Gender F	Side 3 Size L22	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5390L-22	Product Weight 0.77 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to replace a run tee on my machine, how do i know if this one matches the threads and tube size

Question by: Scott P on Sep 7, 2025, 7:00 PM

Fit comes down to the callouts on each port. This tee is L22 DIN tube on all three sides with M30 x 2.0 threads, and it is set up with Side 1 and Side 2 as male DIN tube ends and Side 3 as a female DIN tube end.

Answer by: Customer Support on Sep 9, 2025, 2:16 PM

All three sides on this thing run M30 x 2.0 threads, but which ones are male and which one's female? Trying to figure out how it'll connect up before I order.

Question by: Johnny M on Jan 22, 2026, 9:02 PM

Two of the three sides are male DIN tube connections, those are Side 1 and Side 2. Side 3 is the female DIN tube connection. All three carry the same M30 x 2.0 thread and the same L22 size, so the thread spec is consistent across the whole fitting. The swivel function is on the run, which gives you some rotational flexibility when you're routing lines into place.

Answer by: Customer Support on Jan 24, 2026, 11:12 AM

What size is that female end on this tee fitting? Gotta make sure I get the right size hose.

Question by: Jerry H on May 11, 2025, 11:45 AM

That Side 3 female end uses a L22 size. It's a DIN tube style with a M30 x 2.0 callout.

Answer by: Customer Support on May 13, 2025, 6:30 AM

Customers Who Bought This Item Also Bought

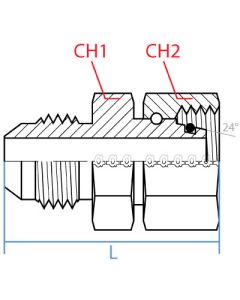

Mjic-Fem Metric Soft Seal
