Male Bspp X Female Jic Swivel

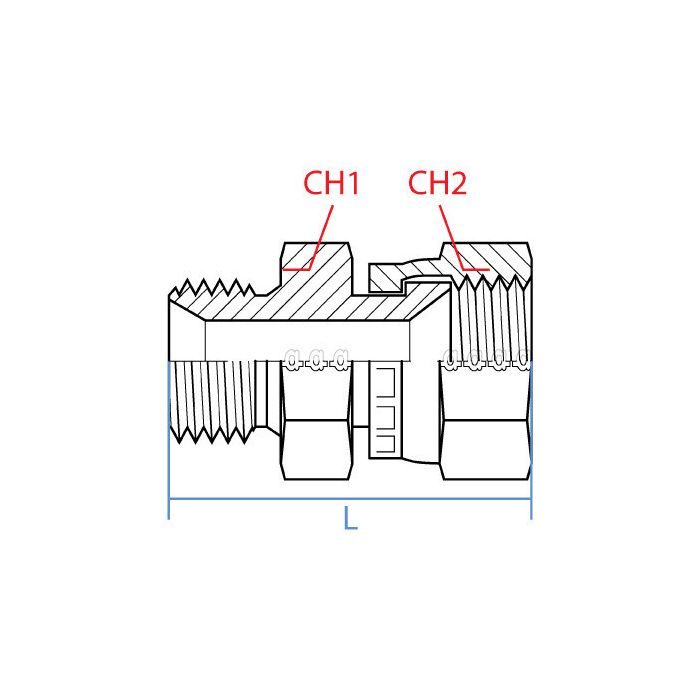

CH1 Width 32mm	CH2 Width 22mm	L Length 51mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-12-08	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a machine running British pipe fittings on one end and JIC lines on the other. Will this adapter actually bridge them two thread types without needing extra pieces in between?

Question by: Carl H on Apr 21, 2025, 11:00 AM

That's what this fitting handles. One end is a 3/4" Male BSPP threaded to the G 3/4-14 standard, and the other is a 1/2" Female JIC swivel cut to 3/4-16 UNF. Those two thread types connect directly through this single adapter, no extra couplings or conversion hardware needed. The straight configuration keeps the inline hydraulic connections clean and simple.

Answer by: Customer Support on Apr 22, 2025, 4:52 PM

got a port that’s G 3/4-14 BSPP on the block, will this adapter screw in there and give me a 1/2" JIC swivel on the hose side?

Question by: Brenda G on Aug 29, 2025, 2:11 PM

For tying those two standards together, it’s a straight steel adapter with a 3/4 inch male BSPP end (G 3/4-14) and a 1/2 inch female JIC swivel end (3/4-16 UNF). That lets a BSPP port mate up to a JIC 37 degree flare connection without stacking extra conversion fittings.

Answer by: Customer Support on Aug 31, 2025, 1:30 PM
