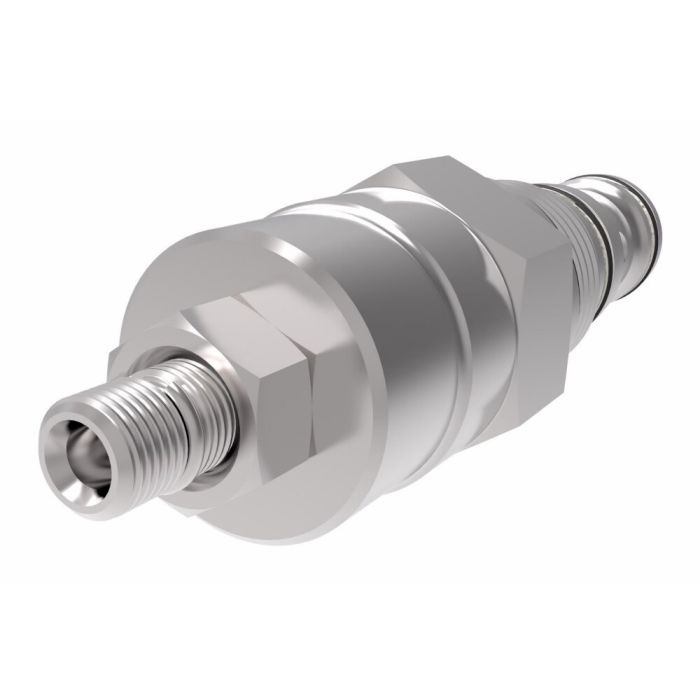

1CE300 Series Counterbalance Cartridge Valve, 1015-5075 PSI (Factory Setting At 3045.00), Screw with Locknut Adjustment, 3:1 Pilot Ratio

Adjustment Style Screw with Locknut	Application Harvesters, refuse haulers, mobile and industrial applications	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Housing None (Select below)	Installation Type Screw-in Cartridge	Leakage 0.25 cc/min	Maximum Load Induced Pressure 270	Maximum Relief Pressure 350	Number of Housing Ports 3	Number of Valve Ports 3	Operation Direct Acting	Pilot Ratio 3:1	Port Type Cartrige Only	Pressure Range (psi) 1015-5075	Pressure Setting 3045	Recommended Filtration Level 18/16/13 microns	Seal Material Nitrile	Seal Type Buna-N	Special Features None	Style Pilot assisted relief with check	Supplier Part Number 406AA00031A	Alternate Part Numbers Alternate Part Number 1CE300F35S3, Alternate Part Number C1JZ82	Product Weight 2.00 lbs

Product Questions & Answers 2

Product Questions & Answers

got a cylinder setup that likes to run away on the way down. is this the kind of valve that’ll hold the load and keep things from free-falling if a hose lets go?

Question by: Johnny P on Jun 4, 2025, 4:43 PM

For controlling moving loads, a counterbalance valve like this is used to prevent load runaway and provide load holding plus hose failure safety. It regulates flow into and out of the actuator, and when it is mounted close to or within the actuator it can stop runaway in a hose burst situation.

Answer by: Customer Support on Jun 5, 2025, 8:40 PM

What kind of machines would you typically see this valve on?

Question by: Terry H on Nov 1, 2025, 6:54 PM

Common applications include harvesters and refuse haulers, plus other mobile and industrial equipment where you need to control moving loads. It's also good for preventing load runaway, giving you load holding and hose failure safety.

Answer by: Customer Support on Nov 3, 2025, 8:29 AM

Similar Products

Part Number	Model Number	Pilot Ratio	Adjustment Style	Pressure Range (psi)	Pressure Setting	Housing	Seal Material	Price	Buy Now
406AA00031A	1CE300F35S3	3:1	Screw with Locknut	1015-5075	3045	None (Select below)	Nitrile
