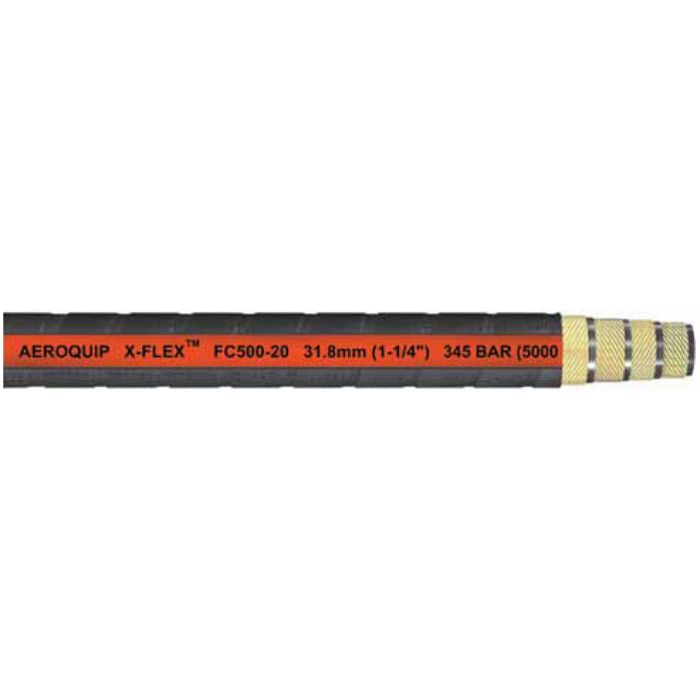

X-FLEX SAE 100R13 High Pressure Hose
Application |
High pressure hydraulic system service with petroleum and water-base fluids for low temperature applications. |
Construction |
Synthetic rubber inner tube, 4-heavy spiral wire reinforcement (sizes -12 to -24), 6-heavy wire spiral reinforcement (size -32) and our DURA-TUFF™ rubber cover. |
Temperature Range |
-40°F to 260°F |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Price | Buy Now |
|---|---|---|---|---|---|---|---|
| FC500-20 | 1.25 | 1.85 | 5076 | 8.25 |
|
||
| FC500-24 | 1.5 | 2.17 | 5076 | 10 |
|
||
| FC500-32 | 2 | 2.86 | 5076 | 18.75 |
|
||
| FC500-12 | 0.75 | 1.26 | 5076 | 4.75 |
|
||
| FC500-16 | 1 | 1.54 | 5076 | 6 |
|
