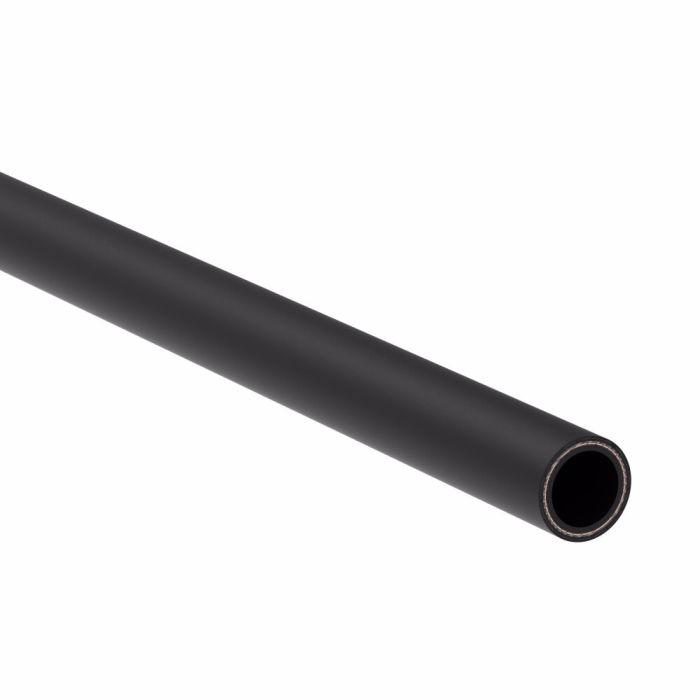

Winner 100R4 Hose WH004-48

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number TK-WH004-48	Application Suitable for use in suction applications for hydraulics, crude fuel, lubricating oils, gasoline, air, water and chemical transfer	Certifications SAE 100R4	Color Black	Compliances MSHA Approved	Conductivity 30	Construction 2-ply braid	Cover Material Synthetic Rubber	Dash Size -48	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 50000 cycle	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 7.09	Minimum Bend Radius 7.09	Minimum Working Temperature -40	Product Width 3.52	Qualified Hose Fittings TTC, 4T, Z	Reinforcement Material Synthetic fiber	Sub Brand Winner	Supplier Part Number WH004-48	Tube Material Synthetic Rubber	Product Weight 1.05 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of stuff is this hose good for, like what can I pump through it?

Question by: Gene P on Mar 26, 2026, 12:52 PM

This hose is suitable for suction applications involving hydraulics, crude fuel, lubricating oils, gasoline, air, water, and even some chemical transfer.

Answer by: Customer Support on Mar 28, 2026, 8:46 AM

been running a lot of suction line work lately and need something rated for hydraulics and fuel both, this hose handle that kind of use?

Question by: Johnny W on Mar 13, 2026, 6:10 AM

Suction duty for hydraulics, crude fuel, lubricating oils, and gasoline all fall within what this hose is built to handle. The WH004-48 is a rubber braided hose with a synthetic rubber tube and a 2-ply braided synthetic fiber reinforcement, so it holds up on the intake side without collapsing under vacuum. It carries SAE 100R4 certification and MSHA approval, which means it meets the compliance requirements most industrial and mining use are going to ask for. The conductive construction also helps with static dissipation in fuel transfer setups.

Answer by: Customer Support on Mar 15, 2026, 6:14 AM

got a suction line on a hydraulic tank setup, would this Winner 100R4 hose be the right kind of hose for that?

Question by: Patty H on Apr 28, 2025, 3:45 PM

For suction service, this hose is a match. It is listed as suitable for suction applications in hydraulics and it is also used for moving crude fuel, lubricating oils, gasoline, air, water, and chemical transfer.

Answer by: Customer Support on Apr 30, 2025, 9:17 AM
