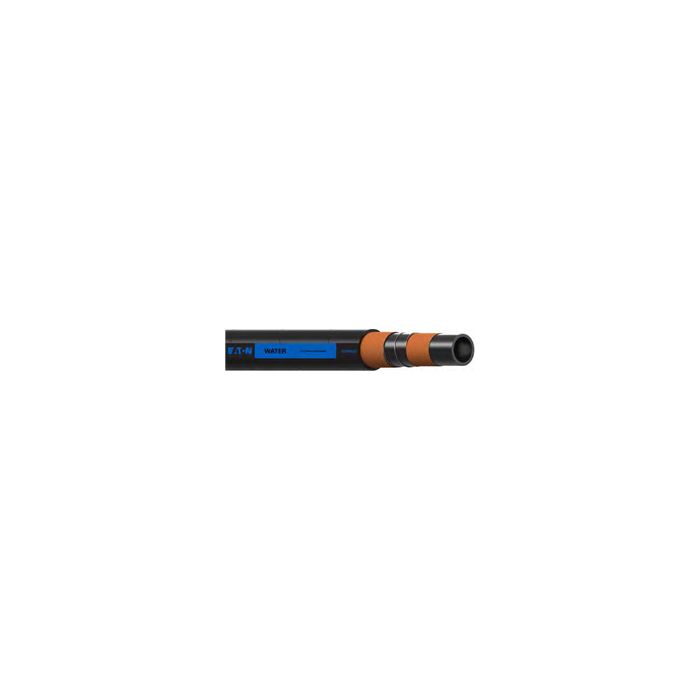

Water Suction & Discharge Hose
Application |
Pumping, suction and discharge of water, mud and slurries. Convey water. Transfer and haul salt water (brine). Please review application requirements and limitations found in |
Construction |
Synthetic rubber tube. Textile and a single steel helical wire reinforcement. Abrasion and weather resistant synthetic rubber cover. |
Fitting Attachment |
Crimp, Swage, Preformed clamps: Band-It Jr Preformed Clamps, Band and Buckle. |
Fittings |
Cam & Groove (Aluminum, Polypropylene). Combination Nipples (Shank type - Medium) (Steel, Brass, Stainless Steel) |
Fittings & Fitting Attachment Suggestions |
• Cam and groove • Combination nipple |
Temperature Range |
-13°F to +158°F |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Vacuum Service | Package Qty. | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| WATER-S&D-24 | 1.5 | 1.89 | 150 | 5.91 | 28 | 100 |
|
||
| WATER-S&D-32 | 2 | 2.44 | 150 | 8.46 | 28 | 100 |
|
||
| WATER-S&D-48 | 3 | 3.5 | 150 | 450 | 13.78 | 28 | 100 |
|
|
| WATER-S&D-64 | 4 | 4 | 150 | 19.29 | 28 | 100 |
|
||
| WATER-S&D-96 | 6 | 6.65 | 150 | 29.92 | 24 | 100 |
|
||
| WATER-S&D-20 | 1.25 | 1.65 | 150 | 4.92 | 28 | 100 |
|
||
| WATER-S&D-40 | 2.5 | 2.95 | 150 | 11.02 | 28 | 100 |
|
