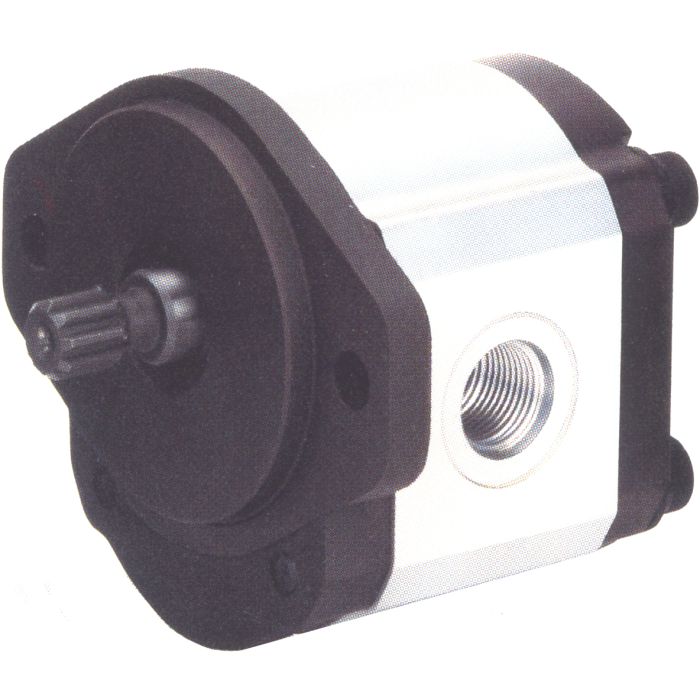

W900 Series Gear Pumps, Up To 13 GPM @ 1800 RPM, Up To 4000 PSI, Up To 4000 RPM

Application	Recommended for direct axial drive. For applications with radial and/or thrust loads, please contact us for application assistance.
Features	Through bore bushing type design constructed of high strength aluminum housings and cast iron end covers. Enhanced noise abatement with 13-tooth gears, superior trapping configuration and optimum gear profile. Efficiencies 90% overall, 98% volumetric, 92% mechanical.
Maximum System Temperature	200°F continuous.
Note	Ratings based on using anti wear hydraulic fluid. For information on use with other fluids, contact us for assistance.
Pressure Limit	Outlet: (Varies with displacement. See table below). Inlet: 6 in. Hg vacuum to 29 PSI.
Rated Speed	Maximum speed varies with displacement (See table below). Minimum speed is 500 RPM at maximum continuous pressure.
Recommended Filtration	ISO 4406 Cleanliness Level 18/14 or cleaner.

Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Features	Pressure Rating	Speed Rating	Price	Buy Now
1303193	0.488	3.8	2-Bolt SAE A	3/4 St.Keyed	SAE-12 Side Inlet, SAE-10 Side Outlet	CW		4000	4000 RPM
