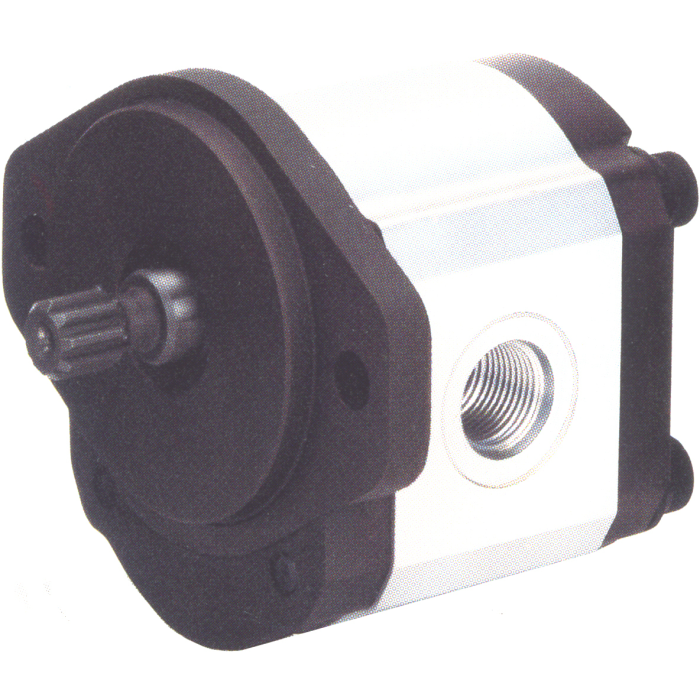

W900 Series Gear Pump, 0.49 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St.Keyed Shaft, SAE-12 Side Inlet, SAE-10 Side Outlet Ports, CW Rotation

Displacement 0.49	Displacement 0.488	Brand Concentric Rockford Inc	Brand Concentric Rockford	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE A	Mount 2-Bolt SAE A	Ports SAE-12 Side Inlet, SAE-10 Side Outlet	Ports SAE-12 Side Inlet, SAE-10 Side Outlet	Pressure Rating 4000	Rated Flow 3.80	Rated Flow 3.8	Rotation CW	Shaft 3/4 St.Keyed	Shaft 3/4 St.Keyed	Speed Rating 4000 RPM	Speed Rating 4000 RPM	Supplier Part Number 1303193	Alternate Part Numbers Alternate Part Number C1AK31	Product Weight 8.00 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this work for a direct drive setup, or do I need extra support for radial loads?

Question by: Wes E on Jan 7, 2026, 11:48 AM

This W900 series gear pump is recommended for direct axial drives. If your application involves radial or thrust loads, it's best to get in touch for application assistance to make sure everything lines up right.

Answer by: Customer Support on Jan 8, 2026, 4:31 PM

got a direct-coupled setup. is this pump meant to be driven straight off the shaft, or do i need to worry about side load on it?

Question by: Rusty B on Aug 8, 2025, 10:10 AM

For direct axial drive, it’s a good fit since that’s the recommended application. Side loading is the thing to watch, because the notes call out that radial and thrust loads are a case where you want extra application support rather than treating it like a side-load tolerant pump.

Answer by: Customer Support on Aug 9, 2025, 5:41 PM

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Features	Pressure Rating	Speed Rating	Price	Buy Now
1303193	0.488	3.8	2-Bolt SAE A	3/4 St.Keyed	SAE-12 Side Inlet, SAE-10 Side Outlet	CW		4000	4000 RPM
