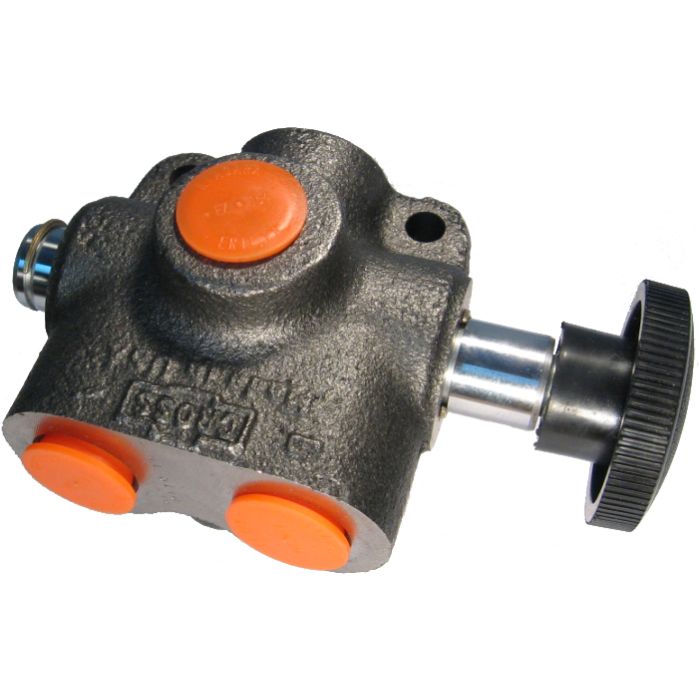

VS Series Single Selector Valves, Up To 40 GPM & 2500 PSI

Available Options

Actuator location port A or port B side. Knob, clevis or plain actuator (VS2 models). Knob, clevis, plain, handle or hydraulic pilot actuator (VS4 models). Manual spool action (VS2 models). Manual, spring return, 2-position detent or hydraulic pilot spool action (VS4 models). Front, bottom or both front and bottom inlet port location. 1/2 NPT or SAE-8 ports (VS2 models). 3/4 NPT, SAE-12 or SAE-16 ports (VS4 models).

Construction

High tensile strength cast iron body. Ground, plated and polished steel spool. Buna-N seals.

Products

Model Number	Rated Flow	Maximum Operating Pressure	Features	Dimensions
VS2BKLF2	20	2500	Standard Knob actuator port B side. Standard Manual spool positioning. Standard front inlet port location.	A=2.12 B=1.53 C=0.34 D=3.25 E=1.19 F=1.62 G=2.25 H=1.00 J=0.31 K=5.33
VS4BKLF6	40	2500	Standard Knob actuator port B side. Standard Manual spool positioning. Standard front inlet port location.	A=3.00 B=1.56 C=0.34 D=4.12 E=1.50 F=2.12 G=2.62 H=1.12 J=6.12 K=6.12
VS4BKLF9	40	2500	Standard Knob actuator port B side. Standard Manual spool positioning. Standard front inlet port location.	A=3.00 B=1.56 C=0.34 D=4.12 E=1.50 F=2.12 G=2.62 H=1.12 J=6.12 K=6.12
