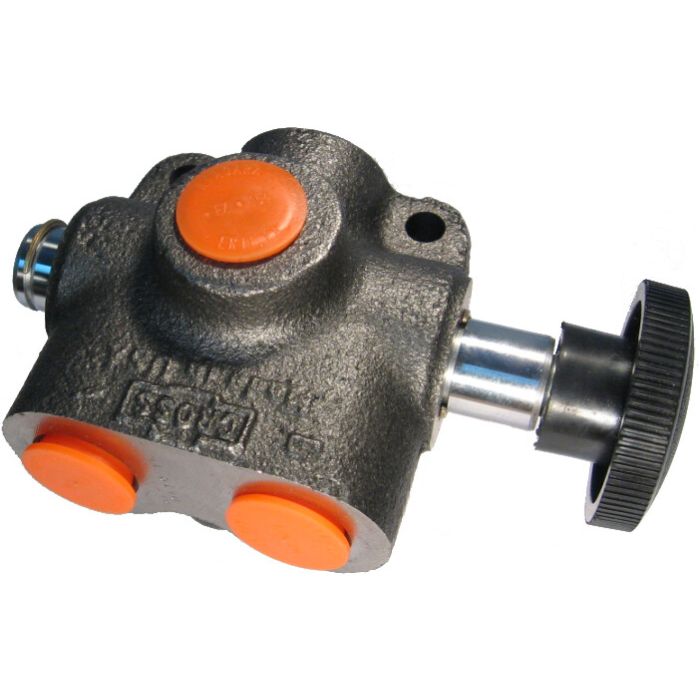

main product photo

VS Series Single Selector Valve, SAE-16 Ports, Up To 40.00 GPM & 2500.00 PSI

Ask A Question
Dimensions
A=3.00 B=1.56 C=0.34 D=4.12 E=1.50 F=2.12 G=2.62 H=1.12 J=6.12 K=6.12
Brand
Cross Manufacturing
Brand
Cross Manufacturing
Pack Size
1.00
UOM
EA
Features
Standard Knob actuator port B side. Standard Manual spool positioning. Standard front inlet port location.
Maximum Operating Pressure
2500
Port Size
SAE-16
Rated Flow
40
Rated Flow
40
Alternate Part Numbers
Alternate Part Number 128103, Alternate Part Number C1DK59, Alternate Part Number C1GK87, Alternate Part Number MI-07426954, Alternate Part Number MINO-06150X00002
Supplier Part Number
128103
Product Weight
6.67 lbs
Product Questions & Answers 2

Product Questions & Answers

If I need to swap out a valve on my backhoe, reckon this one would hold up alright?
Question by: Brett W on Feb 25, 2026, 8:06 PM
Designed with a high tensile strength cast iron body, this VS Series selector valve is built for demanding hydraulic applications, so it should be a solid replacement.
Answer by: Customer Support on Feb 27, 2026, 10:51 AM
SAE-16 ports on this one -- are those the same as 1-inch SAE straight thread fittings, or am I gonna need adapters to hook it up to my existing lines?
Question by: Lyle W on Aug 6, 2025, 8:32 AM
SAE-16 is a 1-inch SAE O-ring face seal port size, so whether you need adapters depends on what your existing lines are terminated with. If you're running SAE-16 fittings already, you're good to go straight in. The VS4 model lineup also comes in 3/4 NPT and SAE-12 if your setup calls for something different, but this specific unit is SAE-16 all the way around.
Answer by: Customer Support on Aug 7, 2025, 9:35 PM

Similar Products

Model Number Rated Flow Maximum Operating Pressure Features Dimensions Price Buy Now
VS2BKLF2 20 2500 Standard Knob actuator port B side. Standard Manual spool positioning. Standard front inlet port location. A=2.12 B=1.53 C=0.34 D=3.25 E=1.19 F=1.62 G=2.25 H=1.00 J=0.31 K=5.33
VS4BKLF6 40 2500 Standard Knob actuator port B side. Standard Manual spool positioning. Standard front inlet port location. A=3.00 B=1.56 C=0.34 D=4.12 E=1.50 F=2.12 G=2.62 H=1.12 J=6.12 K=6.12
VS4BKLF9 40 2500 Standard Knob actuator port B side. Standard Manual spool positioning. Standard front inlet port location. A=3.00 B=1.56 C=0.34 D=4.12 E=1.50 F=2.12 G=2.62 H=1.12 J=6.12 K=6.12
