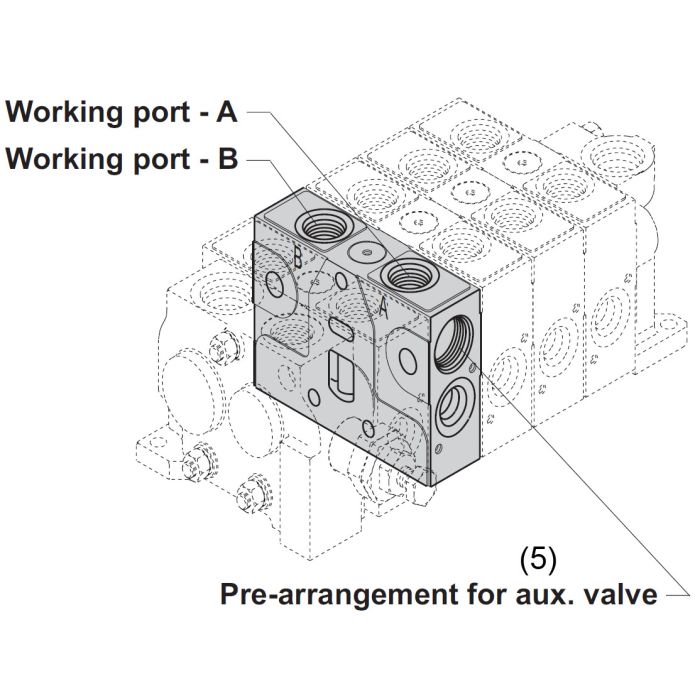

Salami VDM8/VD8 02A ELECTRIC Kit ESA WIT

Brand
Salami Hydraulics Na Inc
Brand
Salami Hydraulics
Pack Size
1.00
UOM
EA
Key
Spool
Supplier Part Number
R23573049
Alternate Part Numbers
Alternate Part Number C1MU42
Product Weight
4.36 lbs

Product Questions & Answers

What kind of fluid should I be running in this thing?
Question by: Tammy W on Dec 20, 2025, 9:10 PM
Optimal fluid viscosity for this kit is between 12 cSt and 75 cSt, but it can handle between 10 cSt and 400 cSt. Keep in mind all the testing data is based on mineral oil with a 16 cSt viscosity.
Answer by: Customer Support on Dec 22, 2025, 6:34 AM
What kind of pressure can this electric kit actually hold up to? Running a pretty demanding circuit and need something that ain't gonna give out under load.
Question by: Warren H on Apr 10, 2025, 8:26 PM
Ports P, A, and B are rated for a maximum operating pressure of 5100 PSI, which puts it well into heavy-duty sectional valve territory. The outlet port T has a back pressure limit of 363 PSI, so keep that in mind when designing your return line. Flow capacity tops out at 20 GPM, and optimal viscosity runs between 12 and 75 cSt, though the kit can handle anywhere from 10 up to 400 cSt if conditions call for it.
Answer by: Customer Support on Apr 12, 2025, 6:52 AM
got a system that’ll see around 4500 psi on the work ports. is this section ok with that kind of pressure?
Question by: Wayne J on Jun 6, 2025, 8:45 AM
Pressure-wise you are within the stated limits as long as it is on ports P, A, or B, since the maximum operating pressure there is 5100 PSI. Keep the outlet port T in mind too, because the max back pressure on T is listed at 363 PSI.
Answer by: Customer Support on Jun 7, 2025, 2:06 PM
