Salami VDM8/VD8 02A M Spool

Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Key Spool	Supplier Part Number 323511302	Alternate Part Numbers Alternate Part Number C1MQ75	Product Weight 0.94 lbs

Product Questions & Answers 3

Product Questions & Answers

what's the max pressure this spool can handle on the work ports?

Question by: Neil M on Dec 12, 2025, 8:35 AM

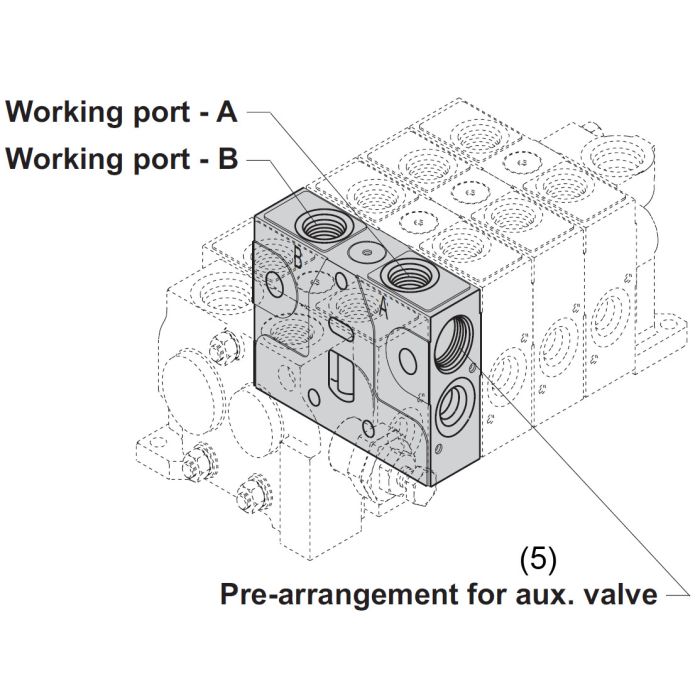

Ports P, A, and B are all rated to 5100 PSI. The outlet port T runs a much lower limit at 363 PSI, so that backpressure ceiling is worth keeping in mind when you're hydraulic connections the return line. Flow rating on this valve is 20 GPM, and internal leakage at 2285 PSI falls in the 1.52 to 2.13 cubic inches per minute range.

Answer by: Customer Support on Dec 14, 2025, 6:02 AM

What kind of fluid should I be using in this valve? Gotta make sure I don't muck anything up.

Question by: Lance T on Dec 12, 2025, 8:46 AM

Optimal performance is achieved using fluid with a viscosity between 12 cSt and 75 cSt. The valve can handle fluid temps from -4°F to 185°F when using standard NBR seals.

Answer by: Customer Support on Dec 13, 2025, 8:49 AM

got a hydraulic setup that sees about 20 gpm. is this spool gonna be a choke point or is it sized for that

Question by: Rod M on Aug 15, 2025, 7:01 PM

For flow, it is rated at 20 GPM, so it is sized to handle that rate as its published capacity.

Answer by: Customer Support on Aug 17, 2025, 8:12 AM

Similar Products

Model Number	Key	Product Description
323511302	Spool	SALAMI VDM8/VD8 02A M SPOOL.
420290180	A side actuator	SALAMI HANDLEVER. VALVE HANDLE. SHAFT/KN.
796366200	Main relief	SALAMI VD8A/VDM8 VA SETTING (20 TO 70 BA.
796366700	Main relief	SALAMI VD8A/VDM8 PORT RELIEF AR (0-420 B.
R23500300	B	SALAMI R2 DETENT KIT
R23573049	Spool	SALAMI VDM8/VD8 02A ELECTRIC KIT ESA WIT.
