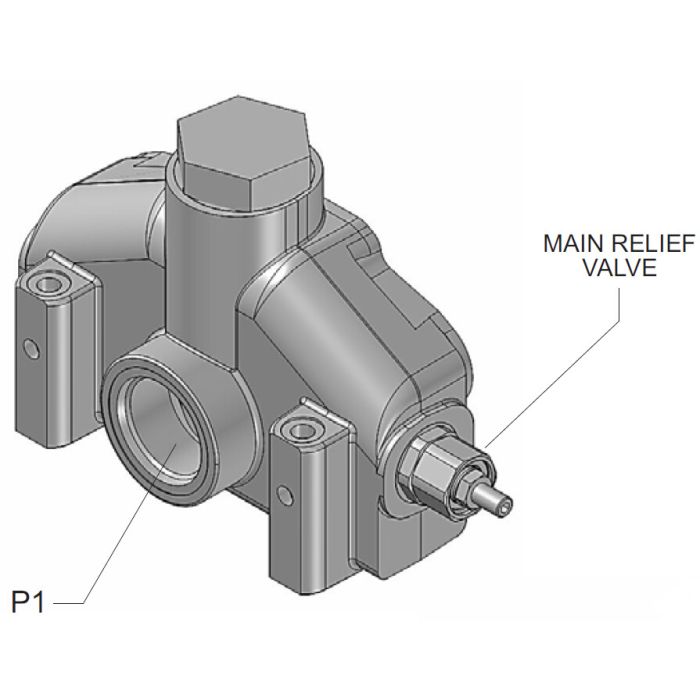

SALAMI VD12A-02P175/SAE 16

Yes, there's a difference worth knowing. Port "P" on the inlet is rated to 4000 PSI, while ports "A" and "B" carry a higher rating of 4500 PSI. The outlet port "T" has a back pressure limit of 363 PSI, so keep that in mind when designing your return line. Those aren't the same number, and mixing them up in a system spec could cause problems down the road.

For operating pressure, ports marked “P” are rated up to 4000 PSI, while ports “A” and “B” are rated up to 4500 PSI. Staying at about 3800 PSI on the P port fits inside the stated maximum.

Optimal fluid viscosity for the Salami VD12A-02P175/SAE 16 is between 12 cSt and 75 cSt. It can handle a minimum of 10 cSt and a maximum of 460 cSt, but works best in the sweet spot.

For flow capacity, the VD12A-02P175/SAE 16 is rated at 48 GPM. Staying at or under that flow rating helps avoid turning the inlet section into the bottleneck in your stack.
