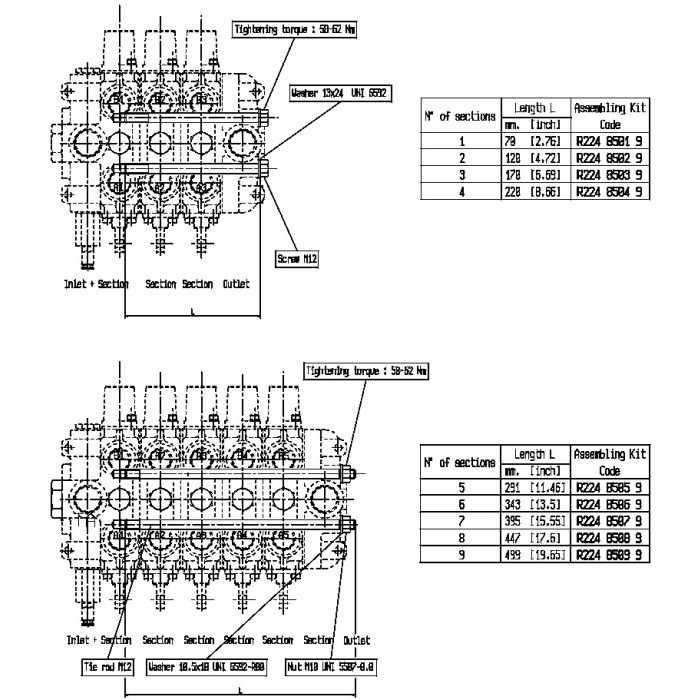

VD12A Series Salami VD12A/3 SECTION BOLT Kit

Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Supplier Part Number R22485039	Alternate Part Numbers Alternate Part Number C1MT77	Product Weight 1.45 lbs

Product Questions & Answers 3

Product Questions & Answers

What’s the ambient temperature range this kit can handle?

Question by: Roy H on Sep 3, 2025, 8:44 AM

The Salami VD12A/3 SECTION BOLT Kit is designed to function in ambient temperatures from 86°F up to 140°F.

Answer by: Customer Support on Sep 4, 2025, 9:13 PM

what's the max pressure this bolt kit can handle on the work ports, and does that differ from the pressure rating on the inlet?

Question by: Sheila R on Aug 21, 2025, 4:51 PM

Port pressure ratings do vary across the assembly. The "P" inlet port is rated to 4000 PSI, while the "A" and "B" work ports can handle up to 4500 PSI. Back pressure on the outlet "T" port tops out at 363 PSI, so that one has a much lower ceiling than the others. Keep all three limits in mind when sizing this into your system.

Answer by: Customer Support on Aug 23, 2025, 8:59 AM

got a VD12A stack that uses the 3 section bolts. is this the right kit, or is it something else

Question by: Pete H on Jan 18, 2026, 9:59 PM

For VD12A series assemblies that call for the VD12A/3 section bolt setup, this is the matching VD12A/3 SECTION BOLT kit. It is identified as Salami part number R22485039, with alternate catalog number C1MT77.

Answer by: Customer Support on Jan 20, 2026, 6:05 AM

Similar Products

Model Number	Product Description	Price	Buy Now
R22485029	SALAMI VD12A/2 SECTION BOLT KIT.
R22485019	SALAMI VD12A/1 SECTION BOLT KIT.
R22485039	SALAMI VD12A/3 SECTION BOLT KIT.
