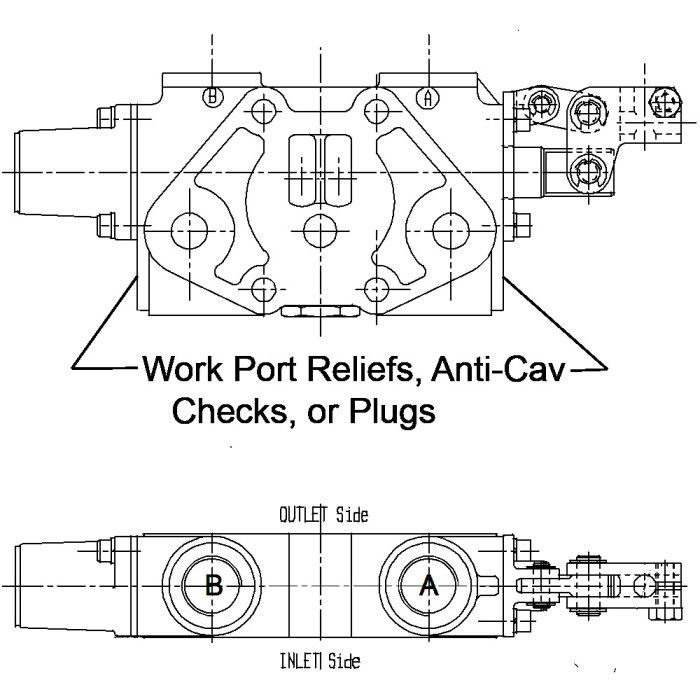

Work section (/P12A-PRA.PRB-MLA-F5/S) parallel circuit, 4-way 4-position, A & B closed in neutral, float position spool out, complete with spring centering positioner, not protected clamp lever control and port valve plugs. SAE -12 work ports.

Brand Salami S.P.A	Brand Salami S.P.A	Pack Size 1.00	UOM EA	Supplier Part Number S22081531	Alternate Part Numbers Alternate Part Number C1MW38	Product Weight 11.40 lbs

Product Questions & Answers 1

Product Questions & Answers

reckon this work section would hold up okay in a hydraulic system runnin' pretty much non-stop?

Question by: Joyce A on Oct 1, 2025, 10:19 AM

The manufacturer's data specifies that all technical data was obtained using mineral oil with a viscosity of 16 cSt and a contamination level of 19/16 as per ISO 4406. Using that grade should help extend service life.

Answer by: Customer Support on Oct 3, 2025, 8:05 AM
