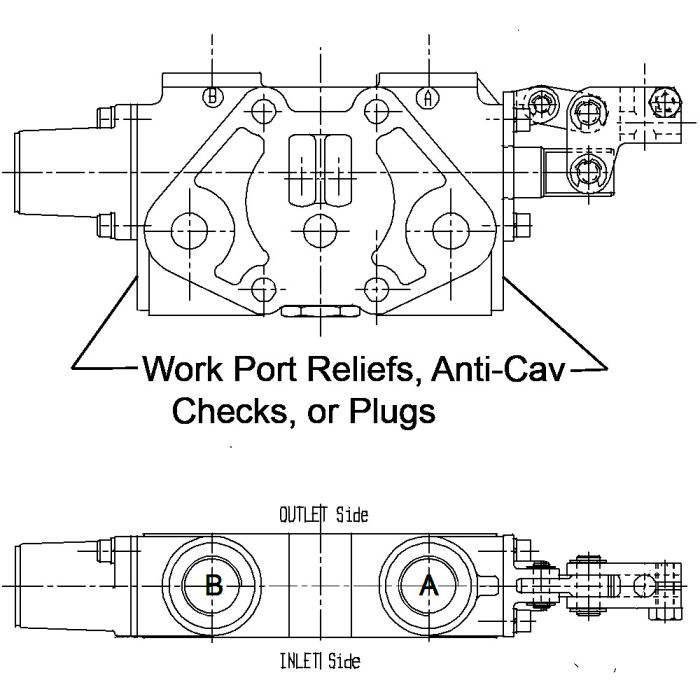

SALAMI VD10A-VD12A P ( 50 - 280 ) PILOT

Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Supplier Part Number R22470081	Alternate Part Numbers Alternate Part Number C1MT68	Product Weight 0.44 lbs

Product Questions & Answers 2

Product Questions & Answers

what's the max pressure this pilot section can handle on the work ports, and is there a difference between port P and ports A and B?

Question by: Pete S on Mar 15, 2026, 1:38 PM

Port "P" is rated to 4000 PSI, while ports "A" and "B" can handle up to 4500 PSI. The outlet port "T" has a separate back pressure limit of 363 PSI, so keep that in mind when hydraulic connections your return line. Those ratings are based on mineral oil at 16 cSt viscosity under ISO 4406 contamination level 19/16 conditions.

Answer by: Customer Support on Mar 16, 2026, 8:06 PM

got a VD10A section on a rig that sees some pressure spikes. what’s the max pressure this pilot section can handle on P vs A and B?

Question by: Lyle H on Jun 10, 2025, 2:56 PM

Pressure-wise, it is rated for 4000 PSI on port P and 4500 PSI on ports A and B.

Answer by: Customer Support on Jun 12, 2025, 6:24 AM
